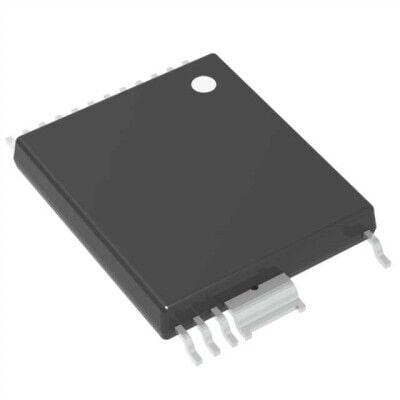

INN3676C-H603-TL Power Integrations Entegre Devre
138,33 TL
14,47 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
INN3676C-H603-TL
Stok Adedi
0
Fiyat
2,62 USD + KDV
Power Integrations INN3676C-H603-TL, izole offline flyback dönüştürücü entegresidir ve secondary side SR topolojisini destekler. 75kHz anahtarlama frekansı, 725V breakdown değeri ve dahili anahtar içerir. InSOP-24D (24-PowerSMD, 17 pin) SMD pakette, -40°C ile 105°C çalışma aralığına sahiptir.
INN3676C-H603-TL 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads kılıfta üretilmiştir. Converter Offline Flyback, Secondary Side SR Topology 75kHz InSOP-24D
| Ürün Kodu | INN3676C-H603-TL |
| Packaging | Digi-Reel® |
| Package / Case | 24-PowerSMD Module (0.425", 10.80mm Width), 17 Leads |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Duty Cycle | - |
| Frequency - Switching | 75kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 725V |
| Output Isolation | Isolated |
| Topology | Flyback, Secondary Side SR |
| Voltage - Supply (Vcc/Vdd) | - |
| Supplier Device Package | InSOP-24D |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | Frequency Control, Soft Start |
| Power (Watts) | 40 W |
