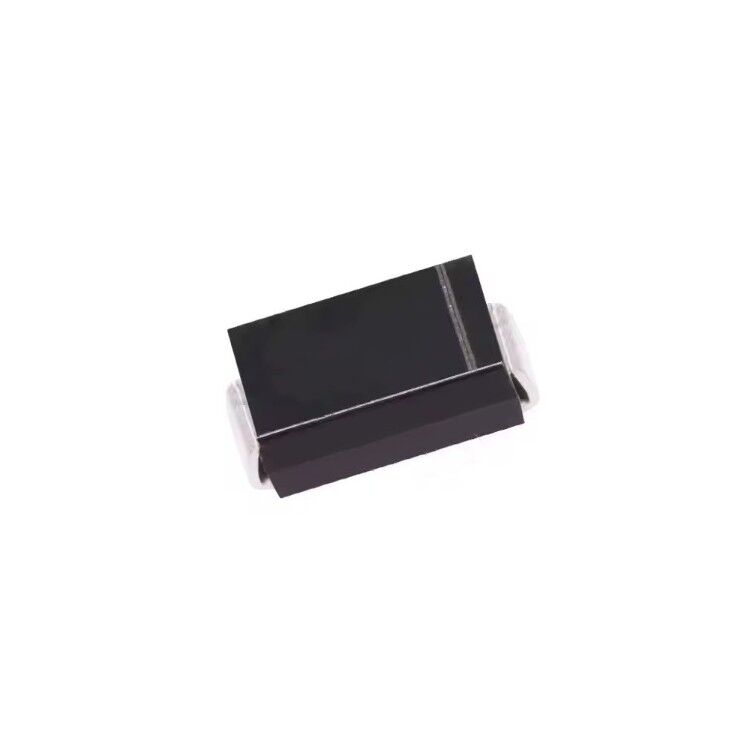

GS1M-LTP 1000V 1A DO214AC (SMA) Diyot
2,08 TL
0,22 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Stok Kodu
GS1M-LTP
Stok Adedi
0
Fiyat
0,04 USD + KDV
GS1M-LTP 1000V 1A DO214AC (SMA) Diyot
| Kılıf | DO-214AC SMA |
|---|---|
| Montaj Tipi | Surface Mount ( SMD ) |
| Üretici Paket/Kılıf | DO-214AC (SMA) |
| Hız | Standard Recovery -500ns - 200mA (Io) |
| Current - Reverse Leakage @ Vr | 10 µA @ 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 1 A |
| Reverse Recovery Time (trr) | - |
| Current - Average Rectified (Io) | 1A |
| Diode Type | Standard |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Capacitance @ Vr- F | 15pF @ 4V 1MHz |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
