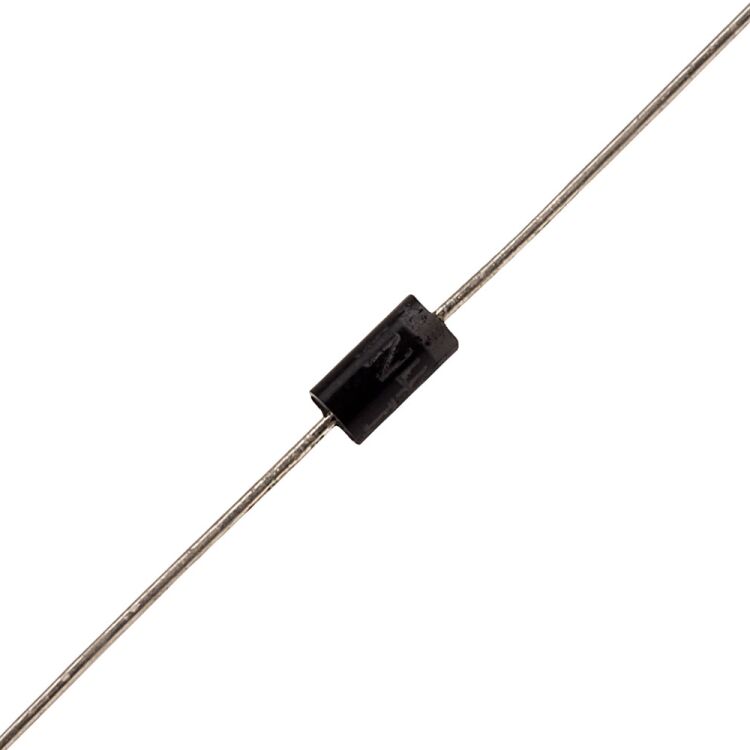

GP10Y-E3/54 1600V 1A DO41 Diyot
1,56 TL
0,16 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
GP10Y-E3/54 1600V 1A DO41 Diyot
| Kılıf | DO-204AL DO-41 Axial |
|---|---|
| Montaj Tipi | Through Hole |
| Üretici Paket/Kılıf | DO-204AL (DO-41) |
| Hız | Standard Recovery -500ns - 200mA (Io) |
| Current - Reverse Leakage @ Vr | 5 µA @ 1600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1 A |
| Reverse Recovery Time (trr) | 3 µs |
| Current - Average Rectified (Io) | 1A |
| Diode Type | Standard |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Capacitance @ Vr- F | 5pF @ 4V 1MHz |
| Voltage - DC Reverse (Vr) (Max) | 1600 V |
