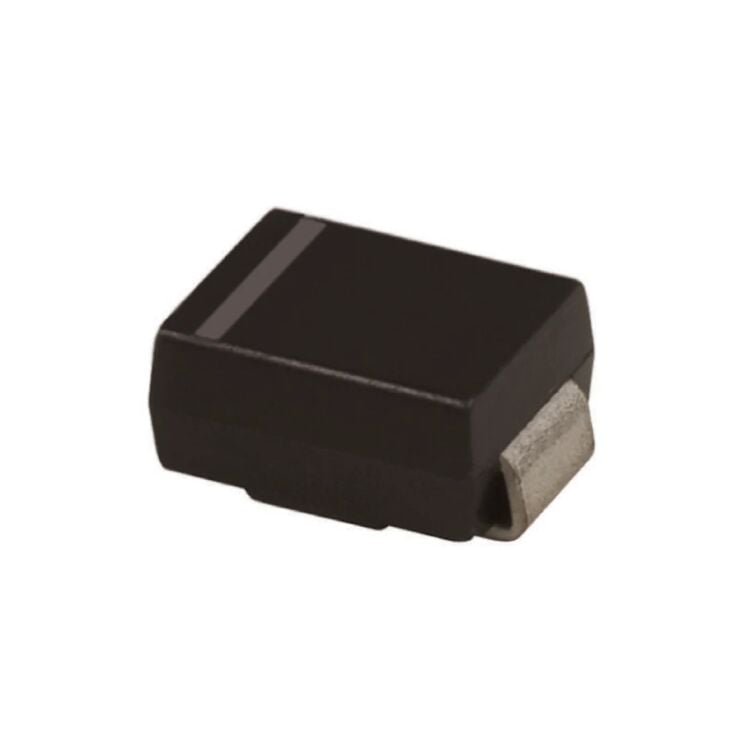

FR1M (FR1M_R1_00001) 1000V 1A DO214AA (SMB) Diyot
7,29 TL
0,76 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
FR1M (FR1M_R1_00001) 1000V 1A DO214AA (SMB) Diyot
| Kılıf | DO-214AA SMB |
|---|---|
| Montaj Tipi | Surface Mount ( SMD ) |
| Üretici Paket/Kılıf | SMB (DO-214AA) |
| Hız | Fast Recovery - 500ns - 200mA (Io) |
| Current - Reverse Leakage @ Vr | 1 µA @ 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1 A |
| Reverse Recovery Time (trr) | 500 ns |
| Current - Average Rectified (Io) | 1A |
| Diode Type | Standard |
| Operating Temperature - Junction | -50°C ~ 150°C |
| Capacitance @ Vr- F | 12pF @ 4V 1MHz |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
