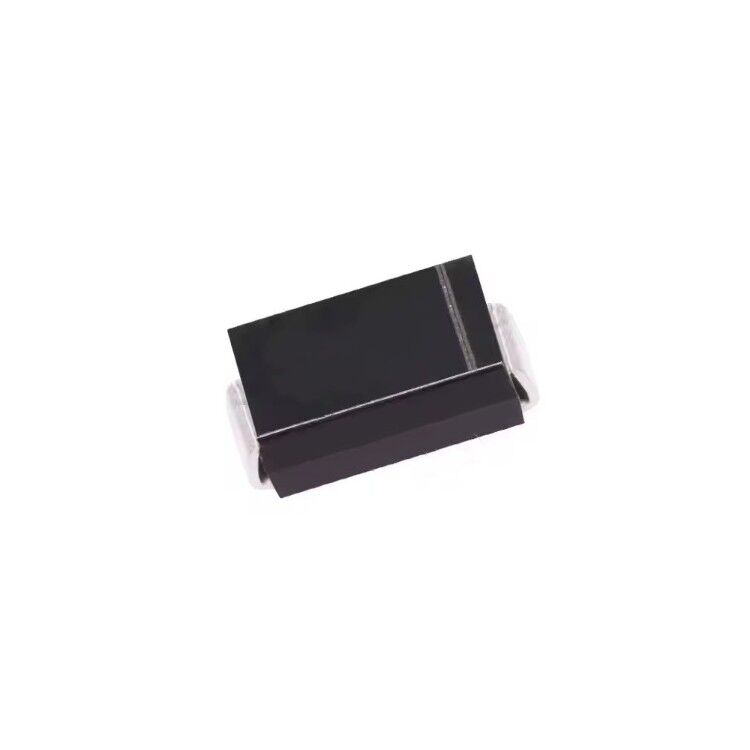

ES2C (ES2C_R1_00001) 150V 2A DO214AC (SMA) Diyot
7,82 TL
0,82 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
ES2C (ES2C_R1_00001) 150V 2A DO214AC (SMA) Diyot
| Kılıf | DO-214AC SMA |
|---|---|
| Montaj Tipi | Surface Mount ( SMD ) |
| Üretici Paket/Kılıf | SMA (DO-214AC) |
| Hız | Fast Recovery - 500ns - 200mA (Io) |
| Current - Reverse Leakage @ Vr | 1 µA @ 150 V |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 2 A |
| Reverse Recovery Time (trr) | 35 ns |
| Current - Average Rectified (Io) | 2A |
| Diode Type | Standard |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Capacitance @ Vr- F | 25pF @ 4V 1MHz |
| Voltage - DC Reverse (Vr) (Max) | 150 V |
