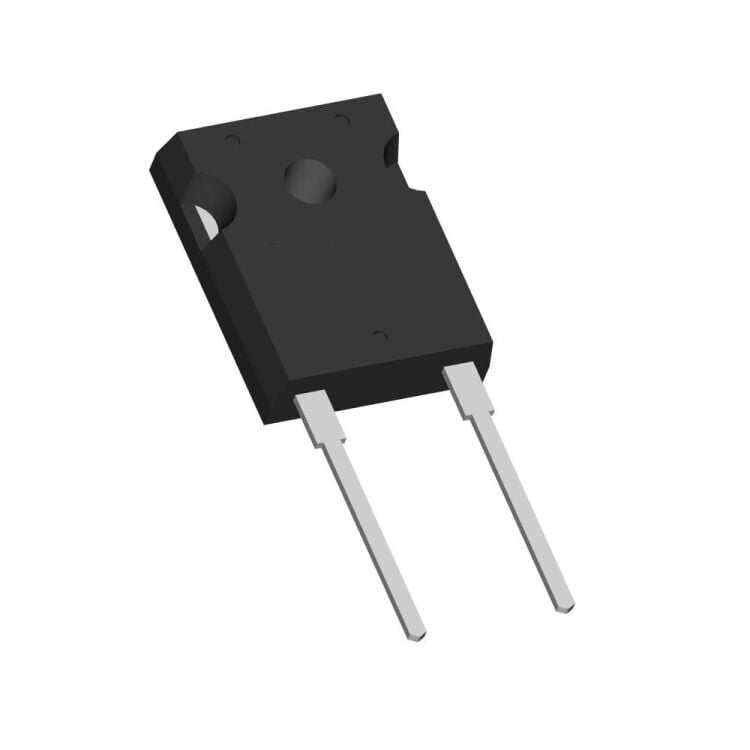

DSEP60-12B 1200V 60A TO247AD-2 Diyot
536,49 TL
56,13 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
DSEP60-12B 1200V 60A TO247AD-2 Diyot
| Kılıf | TO-247-2 |
|---|---|
| Montaj Tipi | Through Hole |
| Üretici Paket/Kılıf | TO-247 |
| Hız | Fast Recovery - 500ns - 200mA (Io) |
| Current - Reverse Leakage @ Vr | 200 µA @ 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 3.25 V @ 60 A |
| Reverse Recovery Time (trr) | 65 ns |
| Current - Average Rectified (Io) | 60A |
| Diode Type | Standard |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Capacitance @ Vr- F | 30pF @ 600V 1MHz |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
