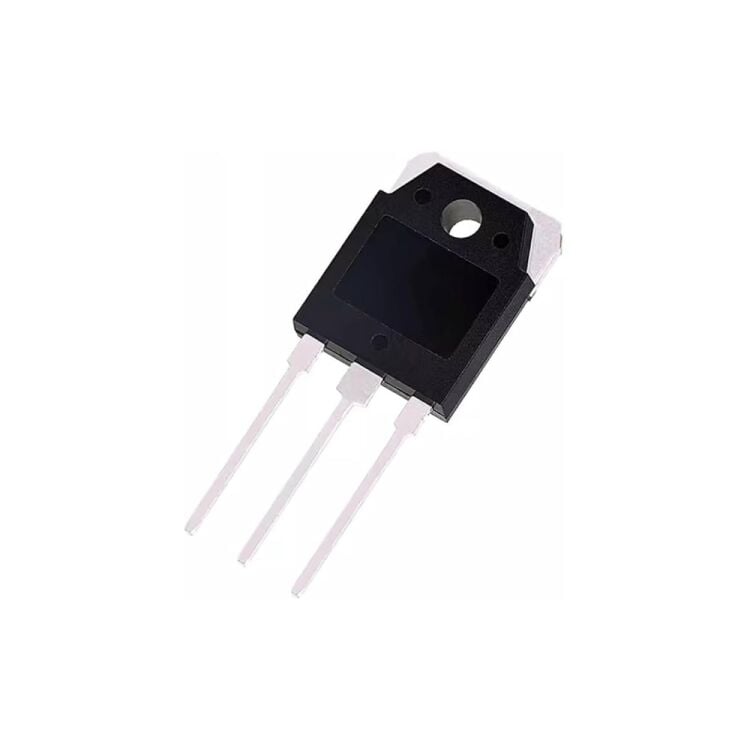

DPG60C200QB 200V 30A TO3P Diyot
173,50 TL
18,15 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
DPG60C200QB 200V 30A TO3P Diyot
| Kılıf | TO-3P-3 SC-65-3 |
|---|---|
| Montaj Tipi | Through Hole |
| Üretici Paket/Kılıf | TO-3P |
| Hız | Fast Recovery - 500ns - 200mA (Io) |
| Current - Reverse Leakage @ Vr | 1 µA @ 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.34 V @ 30 A |
| Reverse Recovery Time (trr) | 35 ns |
| Diode Type | Standard |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) (per Diode) | 30A |
| Diode Configuration | 1 Pair Common Cathode |
Bu ürüne ilk yorumu siz yapın!
