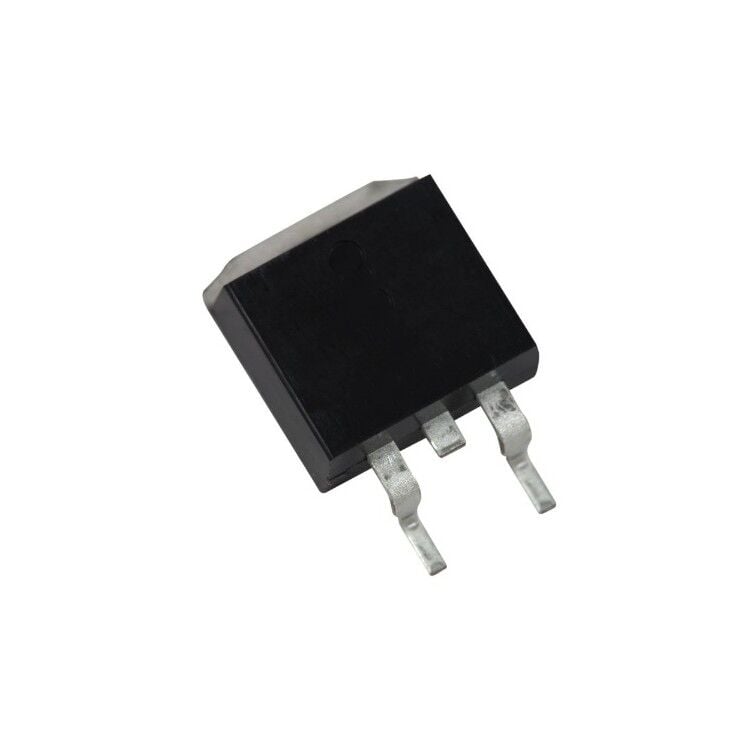

Görseller temsilidir, tam özellikler için datasheet'e bakınız.
DPG30C300PC 300V 15A TO263-3 (D2PAK-3) Diyot Hakkında
DPG30C300PC 300V 15A TO263-3 (D2PAK-3) Diyot
| Kılıf | TO-263-3 D²Pak (2 Leads + Tab) TO-263AB |
|---|---|
| Montaj Tipi | Surface Mount ( SMD ) |
| Üretici Paket/Kılıf | TO-263AA |
| Hız | Fast Recovery - 500ns - 200mA (Io) |
| Current - Reverse Leakage @ Vr | 1 µA @ 300 V |
| Voltage - Forward (Vf) (Max) @ If | 1.26 V @ 15 A |
| Reverse Recovery Time (trr) | 35 ns |
| Diode Type | Standard |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 300 V |
| Current - Average Rectified (Io) (per Diode) | 15A |
| Diode Configuration | 1 Pair Common Cathode |
