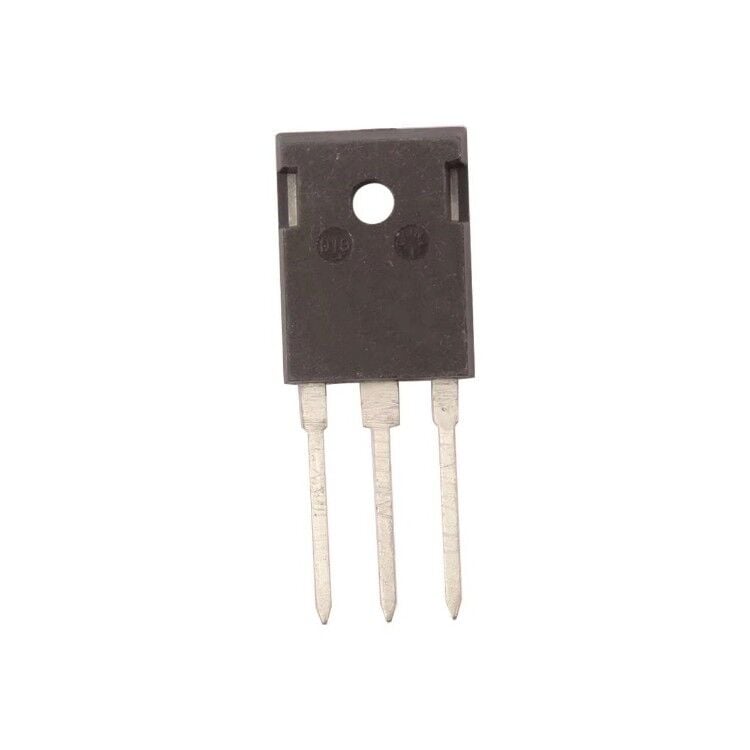

DPG30C200HB 200V 15A TO247-3 Diyot
107,86 TL
11,28 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
DPG30C200HB 200V 15A TO247-3 Diyot
| Kılıf | TO-247-3 |
|---|---|
| Montaj Tipi | Through Hole |
| Üretici Paket/Kılıf | TO-247AD |
| Hız | Fast Recovery - 500ns - 200mA (Io) |
| Current - Reverse Leakage @ Vr | 1 µA @ 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 15 A |
| Reverse Recovery Time (trr) | 35 ns |
| Diode Type | Standard |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) (per Diode) | 15A |
| Diode Configuration | 1 Pair Common Cathode |
