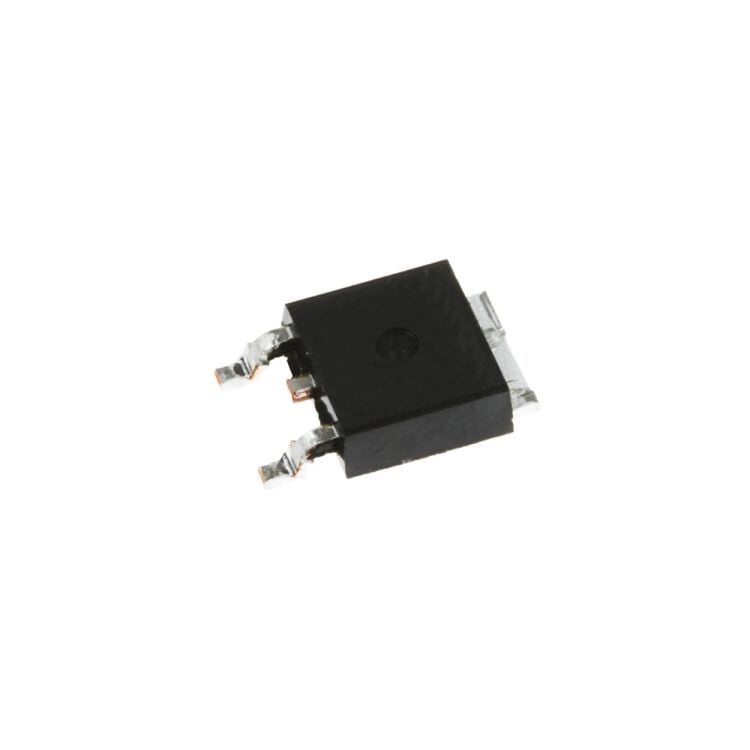

DPG10IM300UC 300V 10A TO252 (DPAK) Diyot
88,87 TL
9,30 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
DPG10IM300UC 300V 10A TO252 (DPAK) Diyot
| Kılıf | TO-252-3 DPak (2 Leads + Tab) SC-63 |
|---|---|
| Montaj Tipi | Surface Mount ( SMD ) |
| Üretici Paket/Kılıf | TO-252AA |
| Hız | Fast Recovery - 500ns - 200mA (Io) |
| Current - Reverse Leakage @ Vr | 1 µA @ 300 V |
| Voltage - Forward (Vf) (Max) @ If | 1.27 V @ 10 A |
| Reverse Recovery Time (trr) | 35 ns |
| Current - Average Rectified (Io) | 10A |
| Diode Type | Standard |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Capacitance @ Vr- F | - |
| Voltage - DC Reverse (Vr) (Max) | 300 V |
