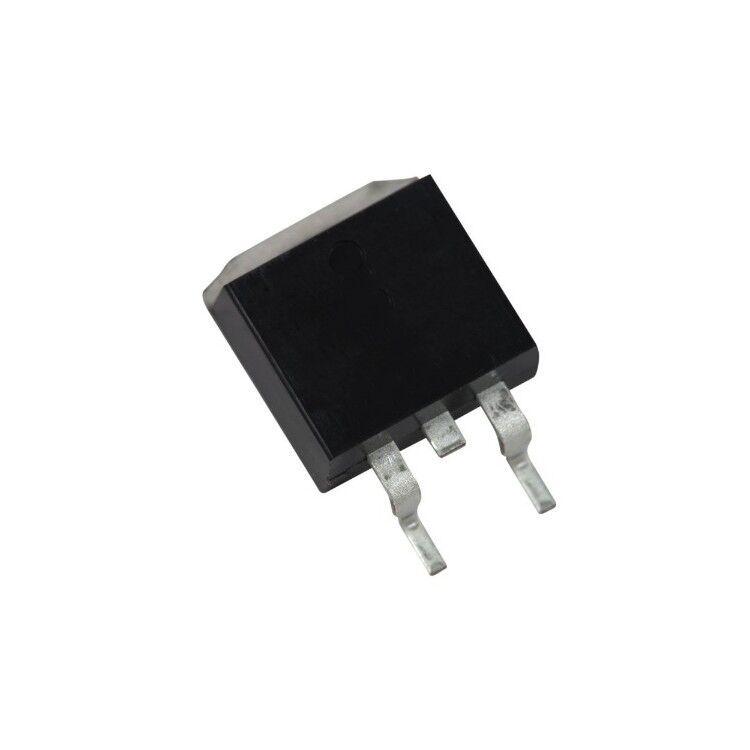

Görseller temsilidir, tam özellikler için datasheet'e bakınız.
DMA30IM1600PZ 1600V 30A TO263-3 (D2PAK-3) Diyot Hakkında
DMA30IM1600PZ 1600V 30A TO263-3 (D2PAK-3) Diyot
| Kılıf | TO-263-3 D²Pak (2 Leads + Tab) TO-263AB |
|---|---|
| Montaj Tipi | Surface Mount ( SMD ) |
| Üretici Paket/Kılıf | TO-263HV |
| Hız | Standard Recovery -500ns - 200mA (Io) |
| Current - Reverse Leakage @ Vr | 40 µA @ 1600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.29 V @ 30 A |
| Reverse Recovery Time (trr) | - |
| Current - Average Rectified (Io) | 30A |
| Diode Type | Standard |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Capacitance @ Vr- F | 10pF @ 400V 1MHz |
| Voltage - DC Reverse (Vr) (Max) | 1600 V |
