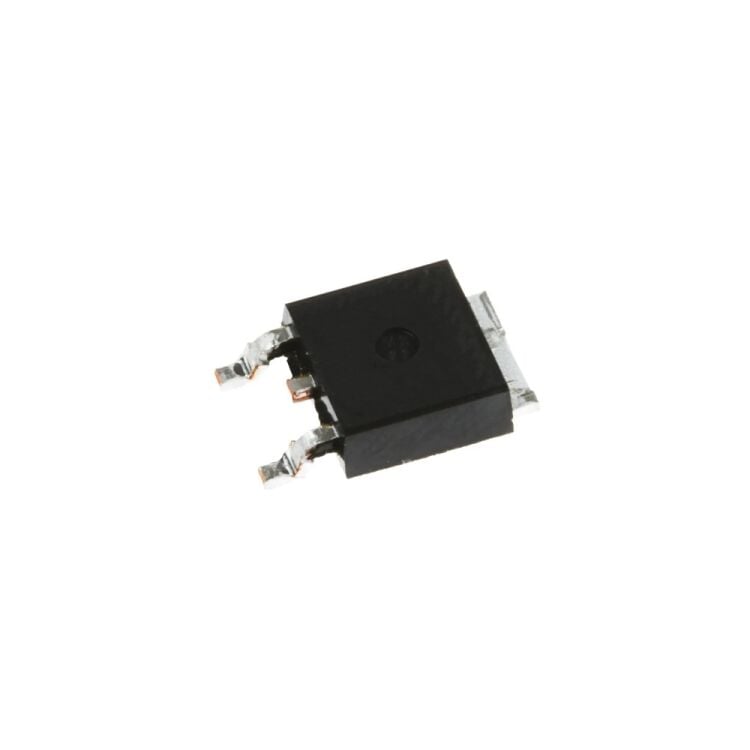

DMA10P1200UZ-TRL 1200V 10A TO252 (DPAK) Diyot
129,13 TL
13,51 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
DMA10P1200UZ-TRL 1200V 10A TO252 (DPAK) Diyot
| Kılıf | TO-252-3 DPak (2 Leads + Tab) SC-63 |
|---|---|
| Montaj Tipi | Surface Mount ( SMD ) |
| Üretici Paket/Kılıf | TO-252AA |
| Hız | Standard Recovery -500ns - 200mA (Io) |
| Current - Reverse Leakage @ Vr | 5 µA @ 1200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.55 V @ 10 A |
| Reverse Recovery Time (trr) | - |
| Current - Average Rectified (Io) | 10A |
| Diode Type | Standard |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Capacitance @ Vr- F | 1pF @ 400V 1MHz |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
Bu ürüne ilk yorumu siz yapın!
