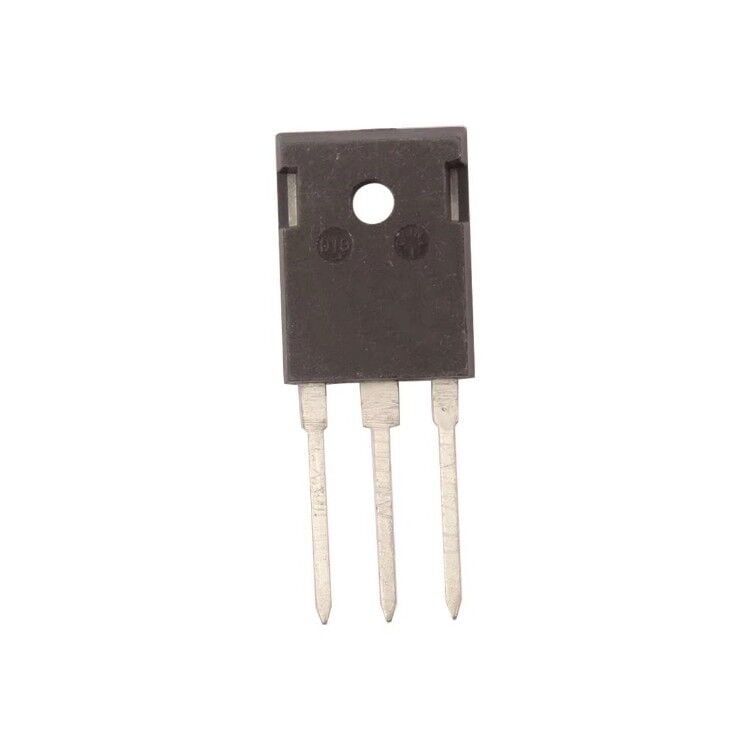

BYV74W-400 400V 30A TO247-3 Diyot
BYV74W-400,127
- Üretici
- Ween Semiconductors
- Kategori
- Kılıf / Paket
- —
BYV74W-400 400V 30A TO247-3 Diyot Hakkında
BYV74W-400 400V 30A TO247-3 Diyot
| Kılıf | TO-247-3 |
|---|---|
| Montaj Tipi | Through Hole |
| Üretici Paket/Kılıf | TO-247-3 |
| Hız | Fast Recovery - 500ns - 200mA (Io) |
| Current - Reverse Leakage @ Vr | 50 µA @ 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.36 V @ 30 A |
| Reverse Recovery Time (trr) | 60 ns |
| Diode Type | Standard |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Current - Average Rectified (Io) (per Diode) | 30A |
| Diode Configuration | 1 Pair Common Cathode |
