Görseller temsilidir, tam özellikler için datasheet'e bakınız.

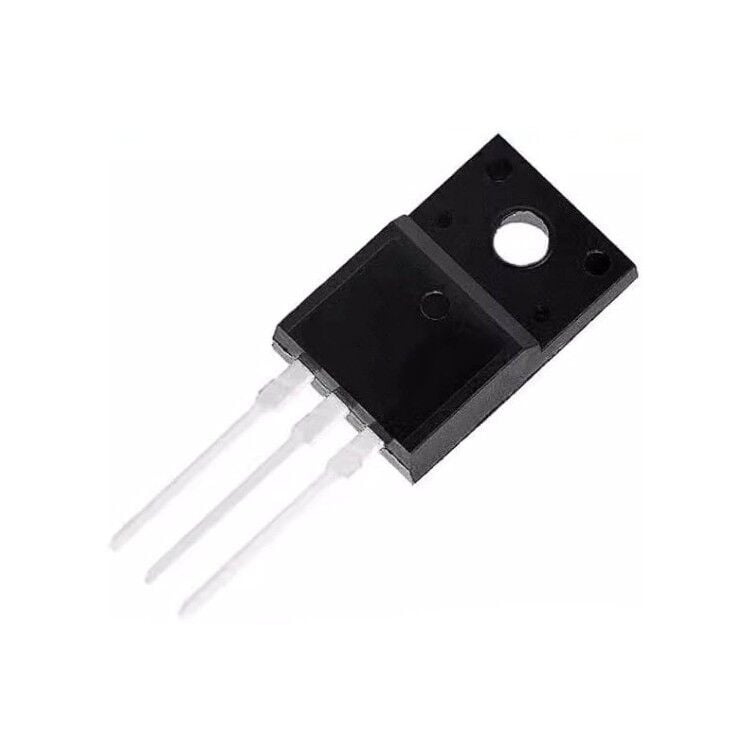

BYC405X-400PQ 400V 10A TO220F Diyot
BYC405X-400PQ
- Üretici
- Ween Semiconductors
- Kategori
- Kılıf / Paket
- —
BYC405X-400PQ 400V 10A TO220F Diyot Hakkında
BYC405X-400PQ 400V 10A TO220F Diyot
| Kılıf | TO-220-3 Full Pack Isolated Tab |
|---|---|
| Montaj Tipi | Through Hole |
| Üretici Paket/Kılıf | TO-220F |
| Hız | Fast Recovery - 500ns - 200mA (Io) |
| Current - Reverse Leakage @ Vr | 10 µA @ 400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 5 A |
| Reverse Recovery Time (trr) | 40 ns |
| Current - Average Rectified (Io) | 10A |
| Diode Type | Standard |
| Operating Temperature - Junction | 150°C |
| Capacitance @ Vr- F | - |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
