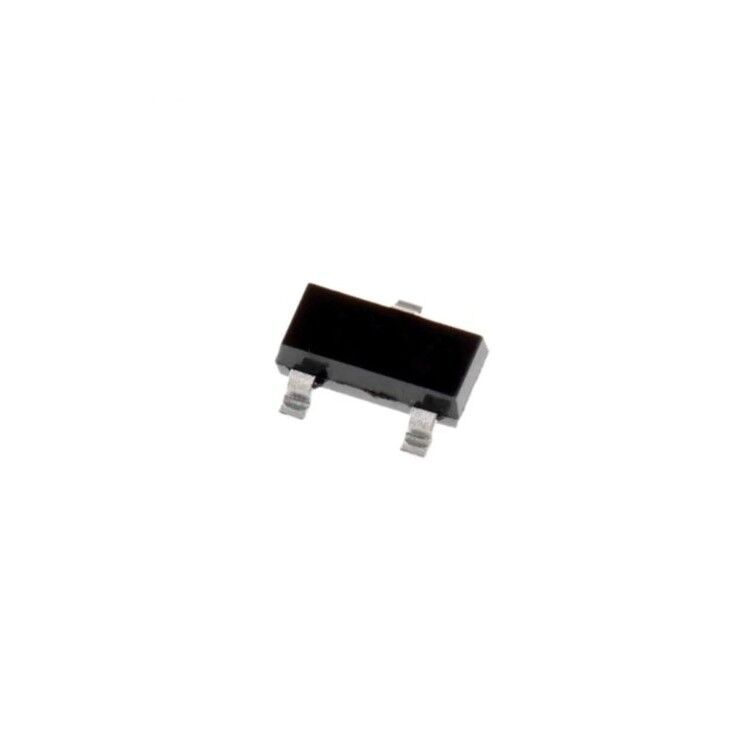

Görseller temsilidir, tam özellikler için datasheet'e bakınız.
BAV99E6327 80V 200mA(DC) SOT23-3 Diyot Hakkında
BAV99E6327 80V 200mA(DC) SOT23-3 Diyot
| Kılıf | TO-236-3 SC-59 SOT-23-3 |
|---|---|
| Montaj Tipi | Surface Mount ( SMD ) |
| Üretici Paket/Kılıf | PG-SOT23 |
| Hız | Small Signal - 200mA (Io) Any Speed |
| Current - Reverse Leakage @ Vr | 150 nA @ 70 V |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Reverse Recovery Time (trr) | 4 ns |
| Diode Type | Standard |
| Operating Temperature - Junction | 150°C (Max) |
| Voltage - DC Reverse (Vr) (Max) | 80 V |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
| Diode Configuration | 1 Pair Series Connection |
