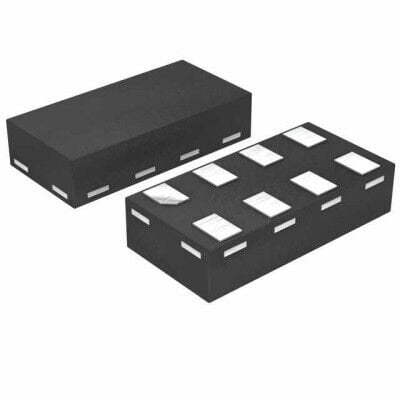

74LVC3G04GT,115 8-XFDFN Entegre Devre Hakkında
74LVC3G04GT,115 8-XFDFN kılıfta üretilmiştir. Inverter IC 3 Channel 8-XSON, SOT833-1 (1.95x1)
| Ürün Kodu | 74LVC3G04GT,115 |
| Packaging | Cut Tape (CT) |
| Features | - |
| Package / Case | 8-XFDFN |
| Mounting Type | Surface Mount |
| Logic Type | Inverter |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Output High, Low | 32mA, 32mA |
| Number of Inputs | 3 |
| Supplier Device Package | 8-XSON, SOT833-1 (1.95x1) |
| Input Logic Level - High | 1.7V ~ 2V |
| Input Logic Level - Low | 0.7V ~ 0.8V |
| Max Propagation Delay @ V, Max CL | 3.2ns @ 5V, 50pF |
| Number of Circuits | 3 |
| Current - Quiescent (Max) | 4 µA |
74LVC3G04GT,115 Datasheet dosyasına ulaşmak için tıklayınız.
