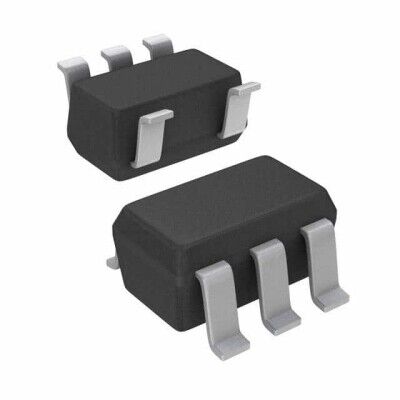

TLV9301IDBVR Texas Instruments SOT-23-5 Op-Amp Entegre Devre
45,17 TL
4,73 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TLV9301IDBVR
Stok Adedi
0
Fiyat
0,84 USD + KDV
TLV9301IDBVR, Texas Instruments üretimi genel amaçlı tek kanallı (1 devre) op-amp entegresidir ve SOT-23-5 kılıftadır. Rail-to-rail çıkış yapısına sahiptir; 1 MHz kazanç bant genişliği ve 3 V/µs slew rate değerleriyle çalışır. Besleme aralığı 4.5 V ile 40 V arasındadır ve çalışma sıcaklığı -40°C ile 125°C’dir.
TLV9301IDBVR IC OPAMP GP 1 CIRCUIT SOT23-5
| Ürün Kodu | TLV9301IDBVR |
| -3db Bandwidth | - |
| Amplifier Type | General Purpose |
| Current - Input Bias | - |
| Current - Output / Channel | 60 mA |
| Current - Supply | 150µA |
| Gain Bandwidth Product | 1 MHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Type | Rail-to-Rail |
| Package / Case | SC-74A, SOT-753 |
| Part Status | Active |
| Slew Rate | 3V/µs |
| Supplier Device Package | SOT-23-5 |
| Voltage - Input Offset | 2.5 mV |
| Voltage - Supply Span (Max) | 40 V |
| Voltage - Supply Span (Min) | 4.5 V |
TLV9301IDBVR Datasheet dosyasına ulaşmak için tıklayınız.
