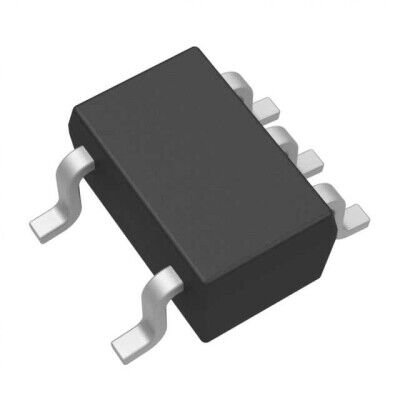

TLV3231DCKR SC-70-5 Karşılaştırıcı Entegre Devre
82,13 TL
8,59 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TLV3231DCKR
Stok Adedi
0
Fiyat
1,53 USD + KDV
Texas Instruments TLV3231DCKR, SC-70-5 (SOT-353) kılıfta, tek kanallı genel amaçlı karşılaştırıcıdır. Push-pull, rail-to-rail çıkış yapısına sahiptir ve 2.7V–5.5V besleme aralığında çalışır. Maksimum 25ns yayılma gecikmesi ve -40°C ile 125°C çalışma sıcaklık aralığı sunar.
TLV3231DCKR 5-TSSOP, SC-70-5, SOT-353 kılıfta üretilmiştir. Comparator Standard (General Purpose) Push-Pull, Rail-to-Rail SC-70-5
| Ürün Kodu | TLV3231DCKR |
| Type | Standard (General Purpose) |
| Number of Elements | 1 |
| Output Type | Push-Pull, Rail-to-Rail |
| Voltage - Supply, Single/Dual (±) | 2.7V ~ 5.5V |
| Voltage - Input Offset (Max) | 4mV @ 5V |
| Current - Input Bias (Max) | 0.001µA @ 5V |
| Current - Output (Typ) | 45mA @ 5V |
| Current - Quiescent (Max) | 250µA |
| CMRR, PSRR (Typ) | 82dB CMRR, 92dB PSRR |
| Propagation Delay (Max) | 25ns |
| Hysteresis | 3mV |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-5 |
TLV3231DCKR Datasheet dosyasına ulaşmak için tıklayınız.
