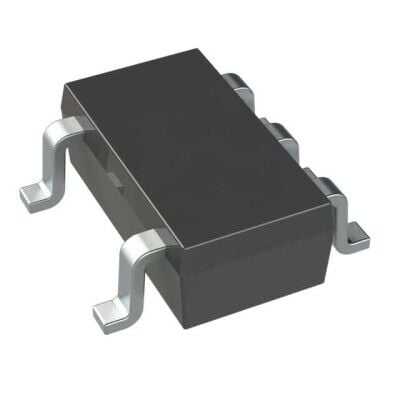

Texas Instruments TLV1811DBVR SOT-23-5 (SC-74A/SOT-753) Entegre Devre
91,80 TL
9,60 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TLV1811DBVR
Stok Adedi
0
Fiyat
1,71 USD + KDV
TLV1811DBVR, Texas Instruments üretimi genel amaçlı tekli komparatördür ve push-pull, rail-to-rail çıkış yapısına sahiptir. 2.4V ile 40V arası besleme aralığında çalışır, tipik 450ns yayılma gecikmesi ve 7.5µA maksimum durgun akım değerine sahiptir. SMD montaja uygun SC-74A/SOT-753 kılıfta, tedarikçi paket tipi SOT-23-5 olarak sunulur.
TLV1811DBVR SC-74A, SOT-753 kılıfta üretilmiştir. Comparator Standard (General Purpose) Push-Pull, Rail-to-Rail SOT-23-5
| Ürün Kodu | TLV1811DBVR |
| Type | Standard (General Purpose) |
| Number of Elements | 1 |
| Output Type | Push-Pull, Rail-to-Rail |
| Voltage - Supply, Single/Dual (±) | 2.4V ~ 40V |
| Voltage - Input Offset (Max) | 3mV @ 12V |
| Current - Input Bias (Max) | 0.15pA @ 12V |
| Current - Output (Typ) | 30mA |
| Current - Quiescent (Max) | 7.5µA |
| CMRR, PSRR (Typ) | 100dB PSRR |
| Propagation Delay (Max) | 450ns (Typ) |
| Hysteresis | - |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | SC-74A, SOT-753 |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-5 |
TLV1811DBVR Datasheet dosyasına ulaşmak için tıklayınız.
