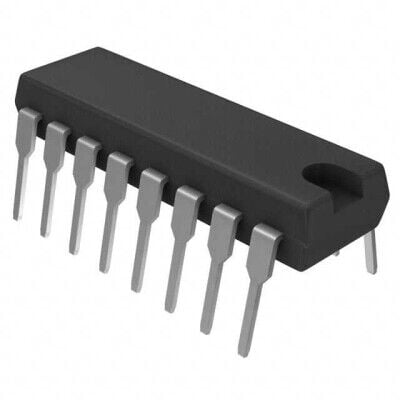

Texas Instruments SN74F112N 16-PDIP JK Flip-Flop Entegre Devre
80,19 TL
8,39 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
SN74F112N
Stok Adedi
1
Fiyat
1,50 USD + KDV
SN74F112N, Texas Instruments üretimi 16-PDIP (DIP-16) kılıfta çift (2 eleman) JK tip flip-flop entegresidir. Negatif kenar tetiklemeli olup preset ve reset fonksiyonlarını destekler; 4.5V–5.5V besleme aralığında çalışır.
SN74F112N IC FF JK TYPE DUAL 1BIT 16DIP
| Ürün Kodu | SN74F112N |
| Clock Frequency | 130 MHz |
| Current - Output High, Low | 1mA, 20mA |
| Current - Quiescent (Iq) | 19 mA |
| Function | Set(Preset) and Reset |
| Input Capacitance | - |
| Max Propagation Delay @ V, Max CL | 6.5ns @ 5V, 50pF |
| Mounting Type | Through Hole |
| Number of Bits per Element | 1 |
| Number of Elements | 2 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Output Type | Complementary |
| Part Status | Active |
| Supplier Device Package | 16-PDIP |
| Trigger Type | Negative Edge |
| Type | JK Type |
| Voltage - Supply | 4.5V ~ 5.5V |
SN74F112N Datasheet dosyasına ulaşmak için tıklayınız.
