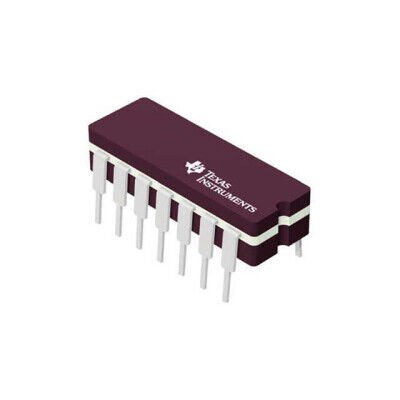

Texas Instruments SN7425N 14-PDIP NOR Kapı Entegre Devre
312,02 TL
32,64 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
SN7425N
Stok Adedi
1
Fiyat
5,83 USD + KDV
SN7425N, Texas Instruments üretimi 14-PDIP (DIP-14) kılıfta, 2 devreli 4 girişli NOR kapı entegresidir. 4.75V–5.25V besleme aralığında çalışır ve strobe özelliği bulunur. Through-hole montaj için uygundur, çalışma sıcaklığı 0°C ile 70°C arasındadır.
SN7425N IC GATE NOR 2CH 4-INP 14DIP
| Ürün Kodu | SN7425N |
| Current - Output High, Low | 800µA, 16mA |
| Current - Quiescent (Max) | - |
| Features | Strobe |
| Logic Level - High | 2V |
| Logic Level - Low | 0.8V |
| Logic Type | NOR Gate |
| Max Propagation Delay @ V, Max CL | 22ns @ 5V, 15pF |
| Mounting Type | Through Hole |
| Number of Circuits | 2 |
| Number of Inputs | 4 |
| Operating Temperature | 0°C ~ 70°C |
| Part Status | Active |
| Supplier Device Package | 14-PDIP |
| Voltage - Supply | 4.75V ~ 5.25V |
SN7425N Datasheet dosyasına ulaşmak için tıklayınız.
