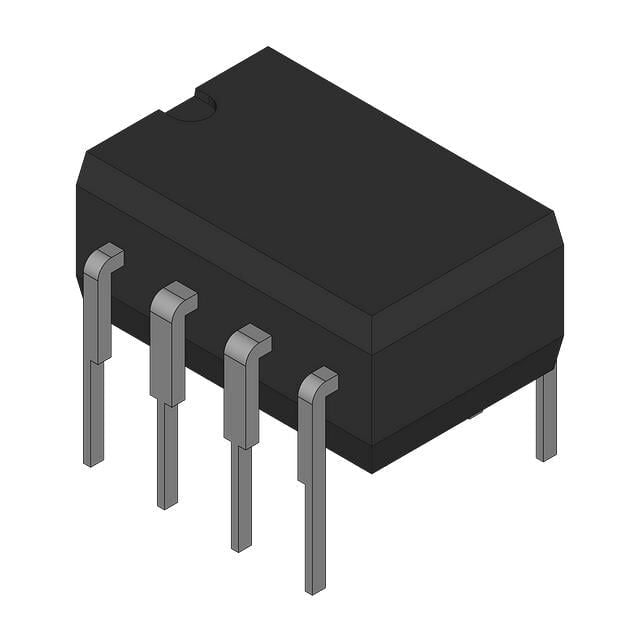

Texas Instruments RC4558P 8-PDIP Çift Op-Amp Entegre Devre
RC4558P
- Üretici
- Texas Instruments
- Kılıf / Paket
- —
Texas Instruments RC4558P 8-PDIP Çift Op-Amp Entegre Devre Hakkında
Texas Instruments RC4558P, genel amaçlı 2 kanallı (dual) operasyonel yükselteç entegresidir ve through-hole 8-PDIP (DIP-8) pakettedir. 3 MHz gain-bandwidth, 1.7 V/µs slew rate ve 10 V–30 V besleme aralığı ile 0°C ile 70°C arasında çalışır.
RC4558P IC OPAMP GP 2 CIRCUIT 8DIP
| Ürün Kodu | RC4558P |
| -3db Bandwidth | - |
| Amplifier Type | General Purpose |
| Current - Input Bias | 150 nA |
| Current - Output / Channel | 10 mA |
| Current - Supply | 2.5mA (x2 Channels) |
| Gain Bandwidth Product | 3 MHz |
| Mounting Type | Through Hole |
| Number of Circuits | 2 |
| Operating Temperature | 0°C ~ 70°C |
| Output Type | Differential |
| Part Status | Active |
| Slew Rate | 1.7V/µs |
| Supplier Device Package | 8-PDIP |
| Voltage - Input Offset | 500 µV |
| Voltage - Supply Span (Max) | 30 V |
| Voltage - Supply Span (Min) | 10 V |
RC4558P Datasheet dosyasına ulaşmak için tıklayınız.
