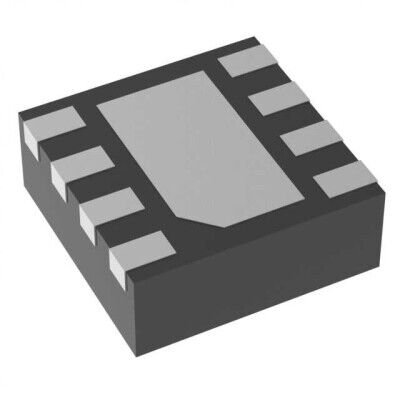

Texas Instruments OPA856IDSGR 8-WSON (2x2) Entegre Devre
445,07 TL
46,56 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
OPA856IDSGR
Stok Adedi
0
Fiyat
8,32 USD + KDV
OPA856IDSGR, Texas Instruments üretimi tek kanallı genel amaçlı op-amp entegresidir. 1.1 GHz -3 dB bant genişliği, 350 V/µs slew rate ve rail-to-rail çıkış yapısı sunar. 3.3 V–5.25 V besleme aralığında çalışır ve 8-WSON (2x2) SMD pakettedir.
OPA856IDSGR IC OPAMP GP 1 CIRCUIT 8WSON
| Ürün Kodu | OPA856IDSGR |
| -3db Bandwidth | 1.1 GHz |
| Amplifier Type | General Purpose |
| Current - Input Bias | 15 µA |
| Current - Output / Channel | 105 mA |
| Current - Supply | 17.2mA |
| Gain Bandwidth Product | 1.08 GHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Type | Rail-to-Rail |
| Package / Case | 8-WFDFN Exposed Pad |
| Part Status | Active |
| Slew Rate | 350V/µs |
| Supplier Device Package | 8-WSON (2x2) |
| Voltage - Input Offset | 200 µV |
| Voltage - Supply Span (Max) | 5.25 V |
| Voltage - Supply Span (Min) | 3.3 V |
OPA856IDSGR Datasheet dosyasına ulaşmak için tıklayınız.
