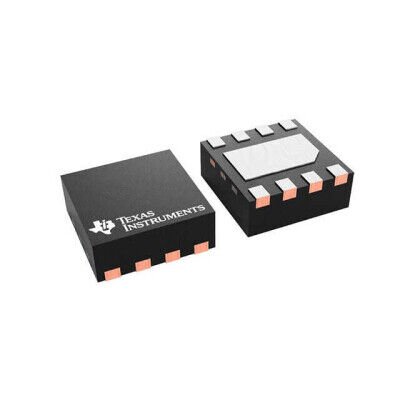

Texas Instruments OPA855YR Die Entegre Devre
527,67 TL
55,20 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
OPA855YR
Stok Adedi
0
Fiyat
9,86 USD + KDV
Texas Instruments OPA855YR, Die kılıfta sunulan standart (genel amaçlı) tek devreli, single-ended çıkışlı bir yükselteç entegresidir. 8 GHz kazanç bant genişliği ve 2750 V/µs slew rate değerlerine sahiptir. 3.3 V ile 5.25 V besleme aralığında ve -40°C ile 125°C çalışma sıcaklığında kullanılabilir.
OPA855YR Die kılıfta üretilmiştir. Standard (General Purpose) Amplifier 1 Circuit Single-Ended Die
| Ürün Kodu | OPA855YR |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 1 |
| Output Type | Single-Ended |
| Slew Rate | 2750V/µs |
| Gain Bandwidth Product | 8 GHz |
| -3db Bandwidth | 2.5 GHz |
| Current - Input Bias | 12 µA |
| Voltage - Input Offset | 200 µV |
| Current - Supply | 17.8mA |
| Current - Output / Channel | 105 mA |
| Voltage - Supply Span (Min) | 3.3 V |
| Voltage - Supply Span (Max) | 5.25 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | Die |
| Supplier Device Package | Die |
OPA855YR Datasheet dosyasına ulaşmak için tıklayınız.
