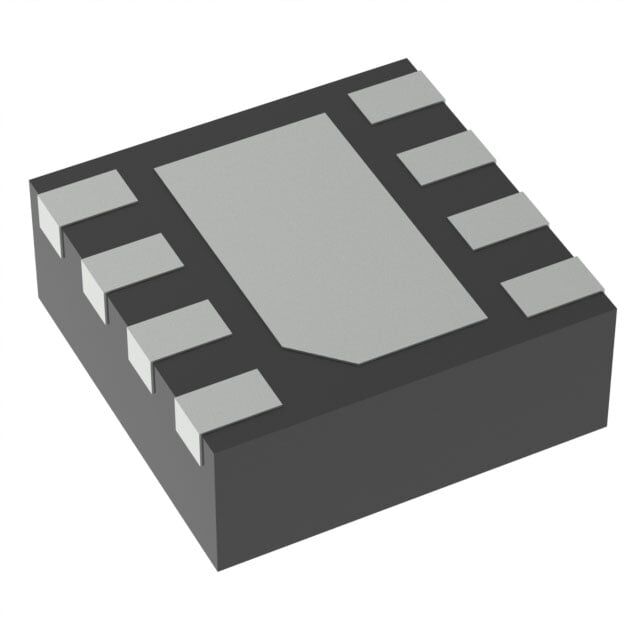

Texas Instruments OPA855QDSGRQ1 8-WSON (2x2) Entegre Devre
612,35 TL
64,06 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
OPA855QDSGRQ1
Stok Adedi
0
Fiyat
11,44 USD + KDV
OPA855QDSGRQ1, Texas Instruments üretimi tek kanallı genel amaçlı op-amp entegresidir ve 8-WSON (2x2) SMD pakettedir. 2.5 GHz -3 dB bant genişliği ve 8 GHz kazanç bant genişliği ile yüksek hızlı uygulamalara uygundur. 3.3 V–5.25 V besleme aralığında çalışır ve -40°C ile 125°C arasında kullanılabilir.
OPA855QDSGRQ1 IC OPAMP GP 1 CIRCUIT 8WSON
| Ürün Kodu | OPA855QDSGRQ1 |
| -3db Bandwidth | 2.5 GHz |
| Amplifier Type | General Purpose |
| Current - Input Bias | 12 µA |
| Current - Output / Channel | 105 mA |
| Current - Supply | 17.8mA |
| Gain Bandwidth Product | 8 GHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Type | Rail-to-Rail |
| Package / Case | 8-WFDFN Exposed Pad |
| Part Status | Active |
| Slew Rate | 2750V/µs |
| Supplier Device Package | 8-WSON (2x2) |
| Voltage - Input Offset | 200 mV |
| Voltage - Supply Span (Max) | 5.25 V |
| Voltage - Supply Span (Min) | 3.3 V |
OPA855QDSGRQ1 Datasheet dosyasına ulaşmak için tıklayınız.
