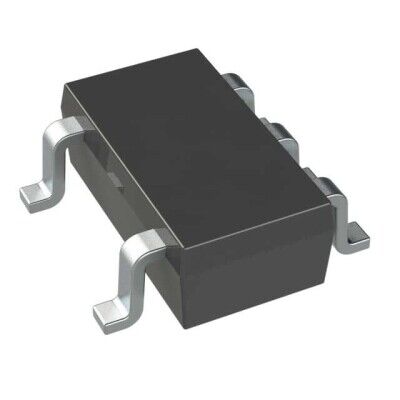

Texas Instruments OPA814DBVR SOT-23-5 Entegre Devre
639,94 TL
66,95 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
OPA814DBVR
Stok Adedi
0
Fiyat
11,96 USD + KDV
OPA814DBVR, Texas Instruments üretimi genel amaçlı tek kanallı (1 devre) single-ended çıkışlı yükselteç entegresidir. 250 MHz gain bandwidth, 750 V/µs slew rate ve 6 V–12.6 V besleme aralığı ile çalışır. SMD montaja uygundur ve SC-74A (SOT-753) / SOT-23-5 kılıftadır.
OPA814DBVR SC-74A, SOT-753 kılıfta üretilmiştir. Standard (General Purpose) Amplifier 1 Circuit Single-Ended SOT-23-5
| Ürün Kodu | OPA814DBVR |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 1 |
| Output Type | Single-Ended |
| Slew Rate | 750V/µs |
| Gain Bandwidth Product | 250 MHz |
| -3db Bandwidth | 25 MHz |
| Current - Input Bias | 2 pA |
| Voltage - Input Offset | 50 µV |
| Current - Supply | 16mA |
| Current - Output / Channel | 90 mA |
| Voltage - Supply Span (Min) | 6 V |
| Voltage - Supply Span (Max) | 12.6 V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
OPA814DBVR Datasheet dosyasına ulaşmak için tıklayınız.
