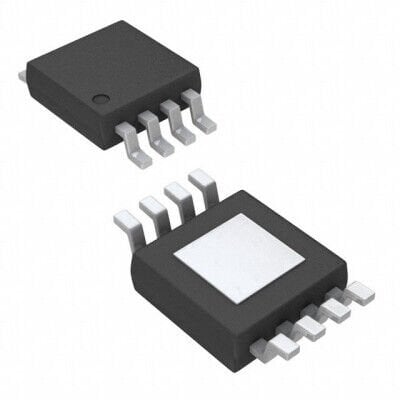

Texas Instruments OPA2891DGNR 8-HVSSOP Entegre Devre
529,33 TL
55,38 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
OPA2891DGNR
Stok Adedi
0
Fiyat
9,89 USD + KDV
Texas Instruments OPA2891DGNR, 2 kanallı standart yükselteç entegresidir ve push-pull çıkış yapısına sahiptir. 9 V ile 36 V besleme aralığında çalışır; 180 MHz kazanç bant genişliği ve 105 V/µs slew rate değerleri sunar. 8-HVSSOP (8-PowerTSSOP/8-MSOP, 3.00 mm genişlik) SMD kılıftadır.
OPA2891DGNR 8-PowerTSSOP, 8-MSOP (0.118", 3.00mm Width) kılıfta üretilmiştir. Standard Amplifier 2 Circuit Push-Pull 8-HVSSOP
| Ürün Kodu | OPA2891DGNR |
| Amplifier Type | Standard |
| Number of Circuits | 2 |
| Output Type | Push-Pull |
| Slew Rate | 105V/µs |
| Gain Bandwidth Product | 180 MHz |
| -3db Bandwidth | 135 MHz |
| Current - Input Bias | 9 µA |
| Voltage - Input Offset | 200 µV |
| Current - Supply | 7.5mA (x2 Channels) |
| Current - Output / Channel | 200 mA |
| Voltage - Supply Span (Min) | 9 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-HVSSOP |
OPA2891DGNR Datasheet dosyasına ulaşmak için tıklayınız.
