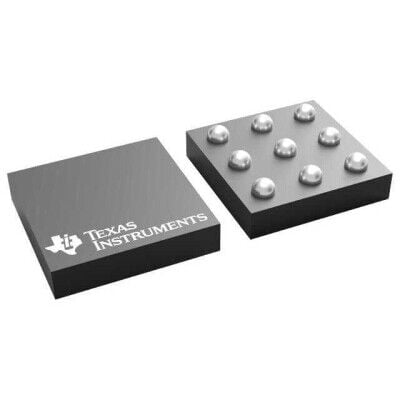

Texas Instruments OPA2392YBJR 9-DSBGA Entegre Devre
310,34 TL
32,47 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
OPA2392YBJR
Stok Adedi
0
Fiyat
5,80 USD + KDV
OPA2392YBJR, Texas Instruments üretimi 2 kanallı genel amaçlı operasyonel yükselteçtir. Push-pull rail-to-rail çıkış yapısına sahiptir; 13 MHz kazanç bant genişliği ve 4.5 V/µs slew rate değerleri sunar. 1.7 V–5.5 V besleme aralığında çalışır ve 9-DSBGA (1.16x1.16) SMD kılıftadır.
OPA2392YBJR 9-XFBGA, DSBGA kılıfta üretilmiştir. Standard (General Purpose) Amplifier 2 Circuit Push-Pull, Rail-to-Rail 9-DSBGA (1.16x1.16)
| Ürün Kodu | OPA2392YBJR |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 2 |
| Output Type | Push-Pull, Rail-to-Rail |
| Slew Rate | 4.5V/µs |
| Gain Bandwidth Product | 13 MHz |
| Current - Input Bias | 0.01 pA |
| Voltage - Input Offset | 2 µV |
| Current - Supply | 1.22mA (x2 Channels) |
| Current - Output / Channel | 65 mA |
| Voltage - Supply Span (Min) | 1.7 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 9-XFBGA, DSBGA |
| Supplier Device Package | 9-DSBGA (1.16x1.16) |
OPA2392YBJR Datasheet dosyasına ulaşmak için tıklayınız.
