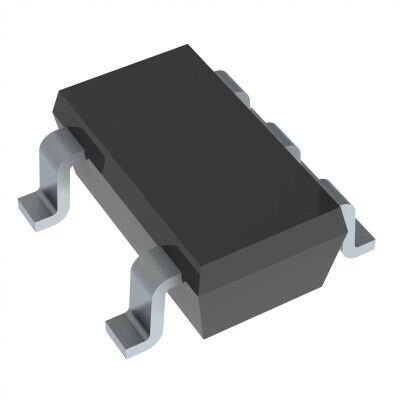

Texas Instruments LMV331IDBVR SOT-23-5 Komparatör Entegre Devre
43,41 TL
4,54 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
LMV331IDBVR
Stok Adedi
1
Fiyat
0,81 USD + KDV
LMV331IDBVR, Texas Instruments üretimi genel amaçlı tekli komparatör entegresidir. 2.7V–5.5V besleme aralığında çalışır, open collector çıkış yapısına sahiptir ve SOT-23-5 (SC-74A/SOT-753) SMD pakettedir. Çalışma sıcaklık aralığı -40°C ile 85°C arasındadır.
LMV331IDBVR IC GP LV COMPARATOR SOT-23-5
| Ürün Kodu | LMV331IDBVR |
| CMRR, PSRR (Typ) | - |
| Current - Input Bias (Max) | 0.25µA @ 5V |
| Current - Output (Typ) | 84mA @ 5V |
| Current - Quiescent (Max) | 150µA |
| Hysteresis | - |
| Mounting Type | Surface Mount |
| Number of Elements | 1 |
| Operating Temperature | -40°C ~ 85°C |
| Output Type | Open Collector |
| Package / Case | SC-74A, SOT-753 |
| Part Status | Active |
| Propagation Delay (Max) | 600ns |
| Supplier Device Package | SOT-23-5 |
| Type | General Purpose |
| Voltage - Input Offset (Max) | 7mV @ 5V |
| Voltage - Supply, Single/Dual (±) | 2.7V ~ 5.5V |
LMV331IDBVR Datasheet dosyasına ulaşmak için tıklayınız.
