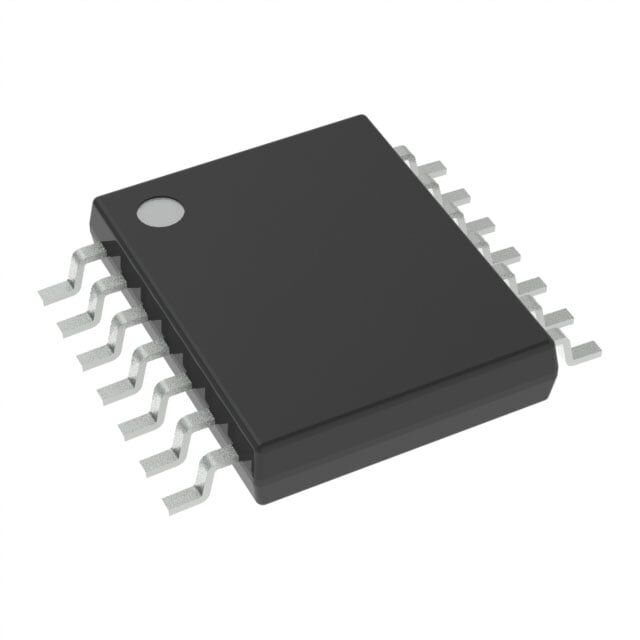

Texas Instruments CD4071BPWR 4x 2 Girişli OR Kapısı Entegre Devre
52,44 TL
5,49 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
CD4071BPWR
Stok Adedi
1
Fiyat
0,99 USD + KDV
CD4071BPWR, Texas Instruments üretimi 4 kanallı, 2 girişli OR kapısı lojik entegresidir. 3V-18V besleme aralığında çalışır ve 14-TSSOP SMD pakettedir. Çalışma sıcaklığı -55°C ile 125°C arasındadır.
CD4071BPWR IC GATE OR 4CH 2-INP 14TSSOP
| Ürün Kodu | CD4071BPWR |
| Current - Output High, Low | 3.4mA, 3.4mA |
| Current - Quiescent (Max) | 1 µA |
| Features | - |
| Logic Level - High | 3.5V ~ 11V |
| Logic Level - Low | 1.5V ~ 4V |
| Logic Type | OR Gate |
| Max Propagation Delay @ V, Max CL | 90ns @ 15V, 50pF |
| Mounting Type | Surface Mount |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Operating Temperature | -55°C ~ 125°C |
| Part Status | Active |
| Supplier Device Package | 14-TSSOP |
| Voltage - Supply | 3V ~ 18V |
CD4071BPWR Datasheet dosyasına ulaşmak için tıklayınız.
