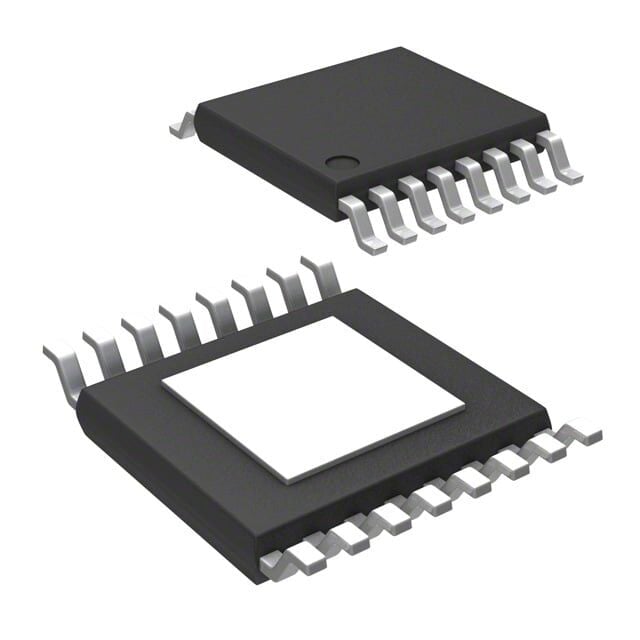

TAS5421QPWPRQ1 16-HTSSOP 22W Class-D Mono Amfi Entegre Devre
392,74 TL
41,09 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
TAS5421QPWPRQ1
Stok Adedi
0
Fiyat
7,34 USD + KDV
Texas Instruments TAS5421QPWPRQ1, 16-HTSSOP kılıfta Class-D mono ses amplifikatörü entegresidir. 4.5V–18V besleme aralığında 4Ω yükte 22W çıkış gücü sunar. Mute, kısa devre ve termal koruma özelliklerine sahiptir.
TAS5421QPWPRQ1 IC AMP CLASS D MONO 22W 16HTSSOP
| Ürün Kodu | TAS5421QPWPRQ1 |
| Features | Mute, Short-Circuit and Thermal Protection |
| Max Output Power x Channels @ Load | 22W x 1 @ 4Ohm |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Type | 1-Channel (Mono) |
| Part Status | Active |
| Supplier Device Package | 16-HTSSOP |
| Type | Class D |
| Voltage - Supply | 4.5V ~ 18V |
TAS5421QPWPRQ1 Datasheet dosyasına ulaşmak için tıklayınız.
