Görseller temsilidir, tam özellikler için datasheet'e bakınız.

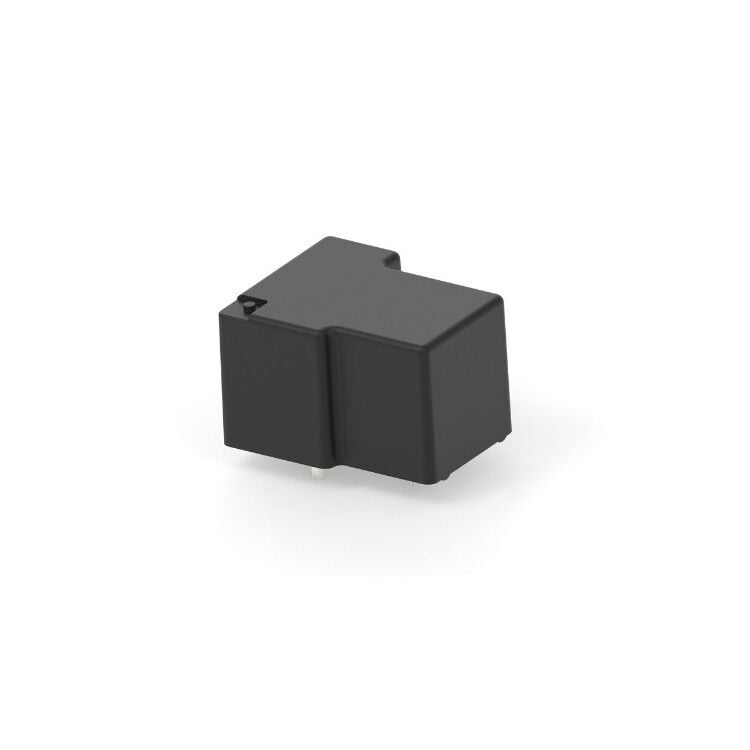

T9AS1D12-24 30A 24V DC 4 Pin T Röle
T9AS1D12-24
- Üretici
- TE Connectivity
- Kategori
- Kılıf / Paket
- —
- Aile / Seri
- T9AS1D12
T9AS1D12-24 30A 24V DC 4 Pin T Röle Hakkında
T9AS1D12-24 30A 24V DC 4 Pin T Röle
| Montaj Tipi | Through Hole |
|---|---|
| Çalışma Sıcaklığı | -55°C ~ 85°C |
| Features | - |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Termination Style | PC Pin |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 30 A |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Release Time | 15 ms |
| Switching Voltage | 277VAC - Max |
| Coil Current | 41.7 mA |
| Coil Type | Non Latching |
| Relay Type | General Purpose |
| Seal Rating | Sealed - Fully |
| Coil Insulation | Class F |
