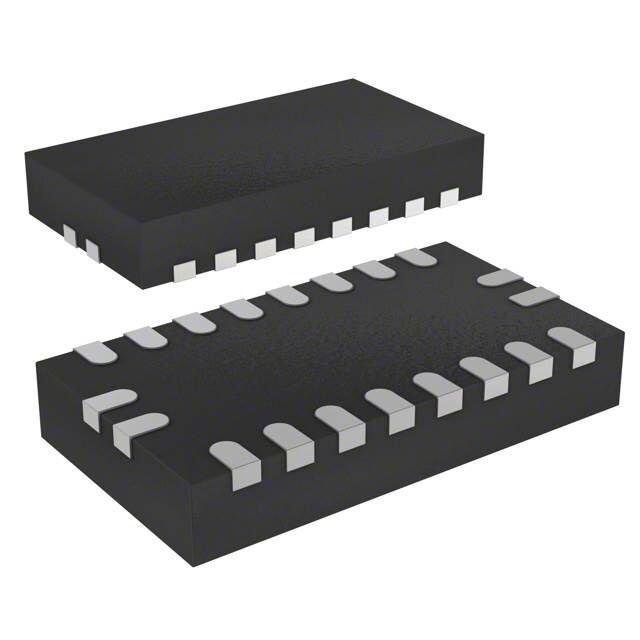

STP4CMPQTR 20-UFQFN LED Sürücü 4 Çıkış Entegre Devre
224,54 TL
23,49 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
STP4CMPQTR
Stok Adedi
0
Fiyat
4,18 USD + KDV
STP4CMPQTR, arka aydınlatma uygulamaları için 4 çıkışlı LED sürücü/DC-DC regülatör entegresidir. Kanal başına 30 mA çıkış akımı sağlar ve PWM ile dimleme destekler. 2.7V-5.5V besleme aralığında çalışır, 20-QFN (3.2x1.8) SMD pakettedir.
STP4CMPQTR IC LED DRVR RGLTR DIM 30MA 20QFN
| Ürün Kodu | STP4CMPQTR |
| Applications | Backlight |
| Current - Output / Channel | 30mA |
| Dimming | PWM |
| Frequency | - |
| Internal Switch(s) | Yes |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 20-UFQFN |
| Part Status | Active |
| Supplier Device Package | 20-QFN (3.2x1.8) |
| Topology | Switched Capacitor (Charge Pump) |
| Type | DC DC Regulator |
| Voltage - Output | 3.8V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Supply (Min) | 2.7V |
