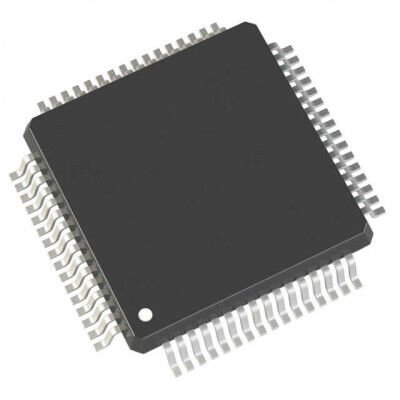

STM32U575RIT6Q 64-LQFP (10x10) Entegre Devre
STM32U575RIT6Q
- Üretici
- STMicroelectronics
- Kılıf / Paket
- —
STM32U575RIT6Q 64-LQFP (10x10) Entegre Devre Hakkında
STM32U575RIT6Q, STMicroelectronics üretimi ARM Cortex-M33 tabanlı 32-bit mikrodenetleyicidir. 160MHz hız, 2MB Flash ve 784KB RAM içerir; 47 I/O ve CAN, I2C, SPI, UART/USART, USB/USB OTG gibi arayüzleri destekler. 1.71V-3.6V besleme aralığında çalışır ve 64-LQFP (10x10) SMD kılıftadır.
STM32U575RIT6Q 64-LQFP kılıfta üretilmiştir. ARM® Cortex®-M33 STM32U5 Microcontroller IC 32-Bit 160MHz 2MB (2M x 8) FLASH 64-LQFP (10x10)
| Ürün Kodu | STM32U575RIT6Q |
| Core Processor | ARM® Cortex®-M33 |
| Core Size | 32-Bit |
| Speed | 160MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, MMC/SD/SDIO, SAI, SmartCard, SPDIF, SPI, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 47 |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 784K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 15x12/14b SAR; D/A 2x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (10x10) |
| Package / Case | 64-LQFP |
