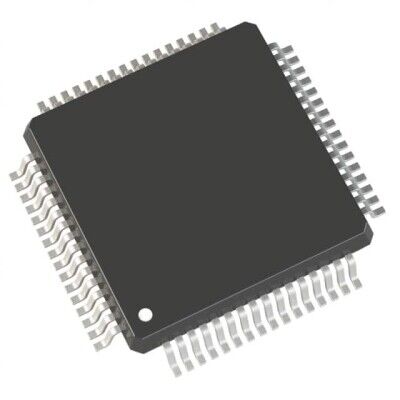

STM32L431RCT6 64-LQFP Entegre Devre Hakkında
STMicroelectronics STM32L431RCT6, ARM Cortex-M4 çekirdekli 32-bit mikrodenetleyicidir. 256KB Flash ve 64KB RAM içerir, 80MHz hızda çalışır ve 1.71V-3.6V besleme aralığını destekler. 64-LQFP (10x10) SMD pakette; CAN, I2C, SPI, UART/USART, QSPI ve SAI gibi arayüzlere sahiptir.
STM32L431RCT6 IC MCU 32BIT 256KB FLASH 64LQFP
| Ürün Kodu | STM32L431RCT6 |
| Connectivity | CANbus, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit |
| Data Converters | A/D 16x12b; D/A 2x12b |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Number of I/O | 52 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package / Case | 64-LQFP |
| Part Status | Active |
| Peripherals | Brown-out Detect/Reset, DMA, PWM, WDT |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | Flash |
| RAM Size | 64K x 8 |
| Speed | 80MHz |
| Supplier Device Package | 64-LQFP (10x10) |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
