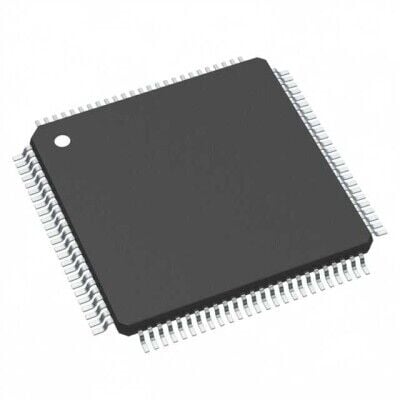

STM32H753VIT6 100-LQFP Mikrodenetleyici Entegre Devre
STM32H753VIT6
- Üretici
- STMicroelectronics
- Kılıf / Paket
- —
STM32H753VIT6 100-LQFP Mikrodenetleyici Entegre Devre Hakkında
STM32H753VIT6, ARM Cortex-M7 çekirdekli 32-bit mikrodenetleyicidir ve 2MB Flash bellek içerir. 480MHz hız, 82 I/O ve CAN, Ethernet, USB OTG, SPI, I2C, UART gibi arayüzleri destekler. 100-LQFP (14x14) SMD pakettedir ve 1.71V-3.6V besleme aralığında çalışır.
STM32H753VIT6 IC MCU 32BIT 2MB FLASH 100LQFP
| Ürün Kodu | STM32H753VIT6 |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit |
| Data Converters | A/D 36x16b; D/A 2x12b |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Number of I/O | 82 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package / Case | 100-LQFP |
| Part Status | Active |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | Flash |
| RAM Size | 1M x 8 |
| Speed | 480MHz |
| Supplier Device Package | 100-LQFP (14x14) |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
