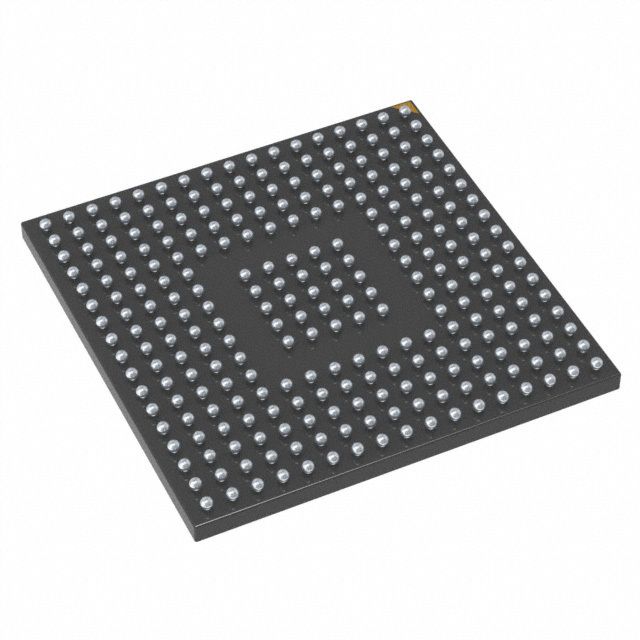

STM32H735IGK6 176+25UFBGA (10x10) Entegre Devre
STM32H735IGK6
- Üretici
- STMicroelectronics
- Kılıf / Paket
- —
STM32H735IGK6 176+25UFBGA (10x10) Entegre Devre Hakkında
STM32H735IGK6, ARM Cortex-M7 çekirdekli 32-bit MCU’dur; 1MB Flash ve 564KB RAM içerir. 176+25 UFBGA (10x10) SMD pakettedir, 128 I/O sunar ve 1.62V-3.6V besleme aralığında çalışır. CAN, Ethernet, USB OTG, SDIO, QSPI, SPI ve I2C gibi arayüzleri destekler.
STM32H735IGK6 IC MCU 32BIT 1MB FLASH 176UFBGA
| Ürün Kodu | STM32H735IGK6 |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit |
| Data Converters | A/D 12x12/b, 22x16b; D/A 2x12b |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Number of I/O | 128 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package / Case | 201-UFBGA |
| Part Status | Active |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | Flash |
| RAM Size | 564K x 8 |
| Speed | 550MHz |
| Supplier Device Package | 176+25UFBGA (10x10) |
| Voltage - Supply (Vcc/Vdd) | 1.62V ~ 3.6V |
