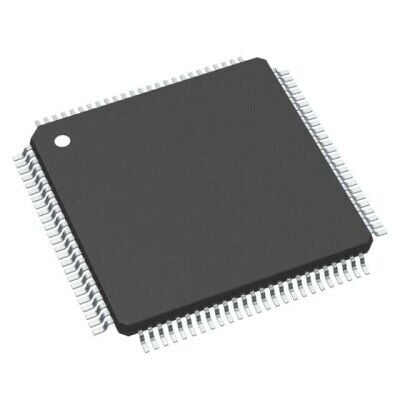

STM32H723VET6 100-LQFP Mikrodenetleyici Entegre Devre
STM32H723VET6
- Üretici
- STMicroelectronics
- Kılıf / Paket
- —
STM32H723VET6 100-LQFP Mikrodenetleyici Entegre Devre Hakkında
STM32H723VET6, ARM Cortex-M7 tabanlı 32-bit mikrodenetleyicidir ve 512KB Flash bellek içerir. 100-LQFP (14x14) SMD pakettedir, 80 I/O sunar ve -40°C ile 85°C aralığında çalışır. CAN, Ethernet, I2C, SPI, UART/USART ve USB OTG gibi arayüzleri destekler.
STM32H723VET6 IC MCU 32BIT 512KB FLASH 100LQFP
| Ürün Kodu | STM32H723VET6 |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit |
| Data Converters | A/D 12x12/b, 18x16b; D/A 2x12b |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Number of I/O | 80 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package / Case | 100-LQFP |
| Part Status | Active |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | Flash |
| RAM Size | 564K x 8 |
| Speed | 550MHz |
| Supplier Device Package | 100-LQFP (14x14) |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
