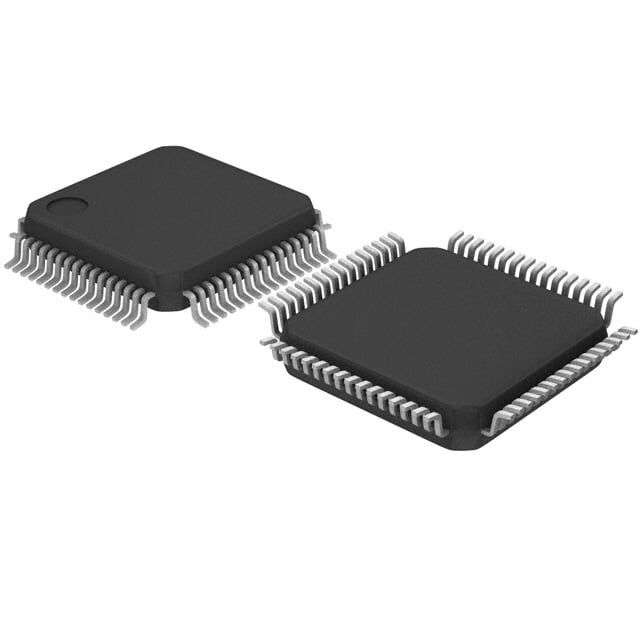

STM32G484RET6 64-LQFP Entegre Devre Hakkında
STM32G484RET6, STMicroelectronics üretimi ARM Cortex-M4 tabanlı 32-bit mikrodenetleyicidir. 512KB Flash, 128KB RAM, 170MHz hız ve 52 I/O sunar; CAN, I2C, SPI, UART/USART ve USB gibi arayüzleri destekler. 64-LQFP (10x10) SMD pakettedir ve 1.71V-3.6V besleme aralığında -40°C ile 85°C arasında çalışır.
STM32G484RET6 IC MCU 32BIT 512KB FLASH 64LQFP
| Ürün Kodu | STM32G484RET6 |
| Connectivity | CANbus, I²C, IrDA, LINbus, QSPI, SAI, SPI, UART/USART, USB |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit |
| Data Converters | A/D 26x12b; D/A 4x12b |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Number of I/O | 52 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package / Case | 64-LQFP |
| Part Status | Active |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | Flash |
| RAM Size | 128K x 8 |
| Speed | 170MHz |
| Supplier Device Package | 64-LQFP (10x10) |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
