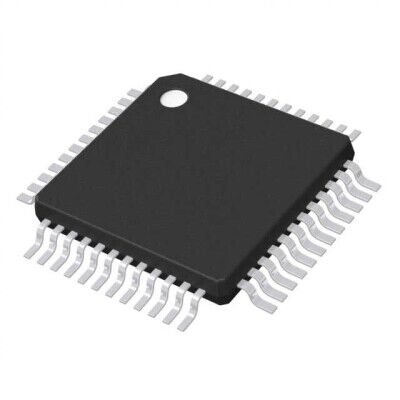

STM32G0B1CET6 48-LQFP (7x7) Entegre Devre Hakkında
STM32G0B1CET6, STMicroelectronics üretimi ARM Cortex-M0+ tabanlı 32-bit mikrodenetleyicidir ve 48-LQFP (7x7) kılıftadır. 64MHz hız, 512KB Flash bellek ve 44 I/O sunar. 1.7V-3.6V besleme aralığında çalışır; CAN, I2C, SPI, UART/USART ve USB 2.0 gibi arayüzleri destekler.
STM32G0B1CET6 48-LQFP kılıfta üretilmiştir. ARM® Cortex®-M0+ STM32G0 Microcontroller IC 32-Bit Single-Core 64MHz 512KB (512K x 8) FLASH 48-LQFP (7x7)
| Ürün Kodu | STM32G0B1CET6 |
| Packaging | Tray |
| Package / Case | 48-LQFP |
| Mounting Type | Surface Mount |
| Speed | 64MHz |
| Program Memory Size | 512KB (512K x 8) |
| RAM Size | 144K x 8 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External, Internal |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| Core Processor | ARM® Cortex®-M0+ |
| Data Converters | A/D 17x12b SAR; D/A 2x12b |
| Core Size | 32-Bit Single-Core |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
| Connectivity | CANbus, HDMI-CEC, I2C, IrDA, LINbus, SPI, UART/USART, USB2.0, USB Type-C™ (Power Delivery) |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT |
| Supplier Device Package | 48-LQFP (7x7) |
| Number of I/O | 44 |
