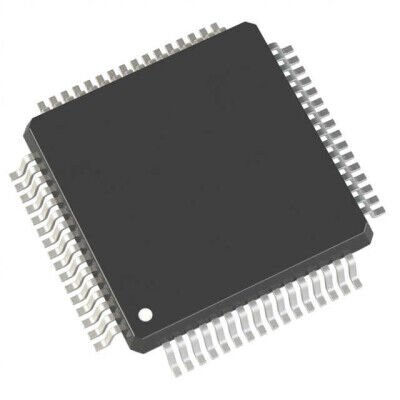

STM32G0B0RET6 64-LQFP Entegre Devre Hakkında
STMicroelectronics STM32G0B0RET6, ARM Cortex-M0+ tabanlı 32-bit mikrodenetleyicidir. 512KB Flash, 144KB RAM, 64MHz hız ve 59 I/O sunar; 2V-3.6V besleme aralığında çalışır. HDMI-CEC, I2C, SPI, UART/USART, USB gibi arayüzleri destekler ve 64-LQFP (10x10) SMD pakettedir.
STM32G0B0RET6 MAINSTREAM VALUE LINE, ARM CORTE
| Ürün Kodu | STM32G0B0RET6 |
| Connectivity | HDMI-CEC, I²C, IrDA, LINbus, SPI, UART/USART, USB |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit |
| Data Converters | A/D 19x12b SAR |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Number of I/O | 59 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | External, Internal |
| Package / Case | 64-LQFP |
| Part Status | Active |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | Flash |
| RAM Size | 144K x 8 |
| Speed | 64MHz |
| Supplier Device Package | 64-LQFP (10x10) |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 3.6V |
