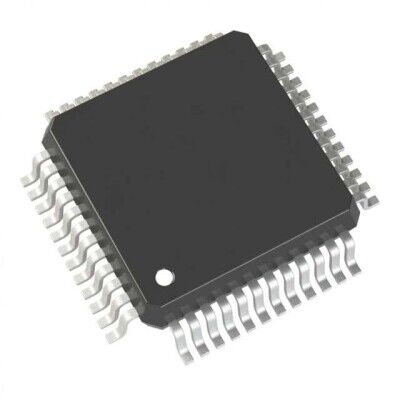

STM32G071CBT6 48-LQFP (7x7) Entegre Devre Hakkında
STMicroelectronics STM32G071CBT6, ARM Cortex-M0+ tabanlı 32-bit mikrodenetleyicidir. 128KB Flash, 36KB RAM, 64MHz hız ve 44 I/O sunar; USB, UART/USART, SPI, I2C, LIN ve HDMI-CEC gibi arayüzleri destekler. 1.71V-3.6V besleme aralığında çalışır ve 48-LQFP (7x7) SMD kılıftadır.
STM32G071CBT6 IC MCU 32BIT 128KB FLASH 48LQFP
| Ürün Kodu | STM32G071CBT6 |
| Connectivity | HDMI-CEC, I²C, IrDA, LINbus, SPI, UART/USART, USB |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit |
| Data Converters | A/D 17x12b; D/A 2x12b |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Number of I/O | 44 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package / Case | 48-LQFP |
| Part Status | Active |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | Flash |
| RAM Size | 36K x 8 |
| Speed | 64MHz |
| Supplier Device Package | 48-LQFP (7x7) |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
