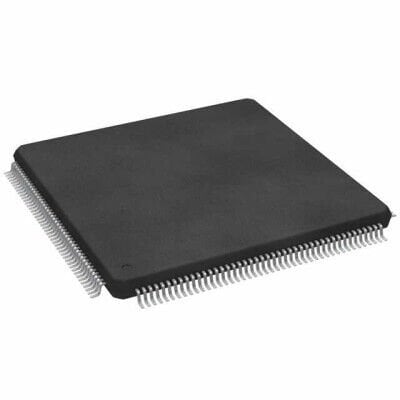

STM32F765IGT6 176-LQFP Mikrodenetleyici Entegre Devre
1.544,43 TL
161,57 TL den başlayan taksitlerle!
0 Puan / 0 Yorum
Kategori
Marka
Stok Kodu
STM32F765IGT6
Stok Adedi
0
Fiyat
28,74 USD + KDV
STMicroelectronics STM32F765IGT6, ARM Cortex-M7 çekirdekli 32-bit MCU’dur ve 216MHz hızda çalışır. 1MB Flash ve 512KB RAM içerir; 176-LQFP (24x24) SMD pakettedir. CAN, Ethernet, USB OTG, SDIO, QSPI, SPI, I2C ve UART/USART gibi arayüzleri destekler.
STM32F765IGT6 IC MCU 32BIT 1MB FLASH 176LQFP
| Ürün Kodu | STM32F765IGT6 |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, UART/USART, USB OTG |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit |
| Data Converters | A/D 24x12b; D/A 2x12b |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Number of I/O | 140 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package / Case | 176-LQFP |
| Part Status | Active |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | Flash |
| RAM Size | 512K x 8 |
| Speed | 216MHz |
| Supplier Device Package | 176-LQFP (24x24) |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
