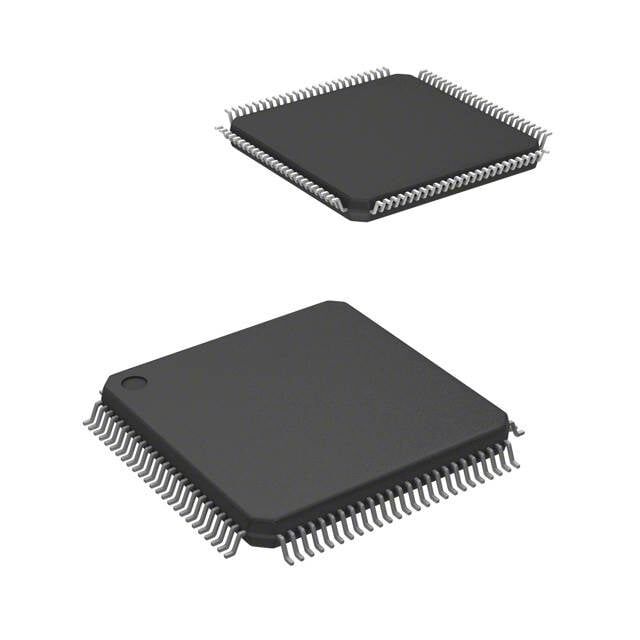

STM32F746VET6 32Bit 512KB Flash 100-LQFP Entegre Devre
STM32F746VET6
- Üretici
- STMicroelectronics
- Kılıf / Paket
- —
STM32F746VET6 32Bit 512KB Flash 100-LQFP Entegre Devre Hakkında
STMicroelectronics STM32F746VET6, ARM Cortex-M7 tabanlı 32-bit MCU’dur; 512KB Flash ve 320KB RAM içerir. 216MHz hızda çalışır, 82 I/O sunar ve 1.7V–3.6V besleme aralığını destekler. 100-LQFP (14x14) SMD pakettedir; Ethernet, USB OTG, CAN, SPI, I2C ve UART/USART gibi arayüzleri bulunur.
STM32F746VET6 IC MCU 32BIT 512KB FLASH 100LQFP
| Ürün Kodu | STM32F746VET6 |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB OTG |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit |
| Data Converters | A/D 16x12b; D/A 2x12b |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Number of I/O | 82 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package / Case | 100-LQFP |
| Part Status | Active |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | Flash |
| RAM Size | 320K x 8 |
| Speed | 216MHz |
| Supplier Device Package | 100-LQFP (14x14) |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
