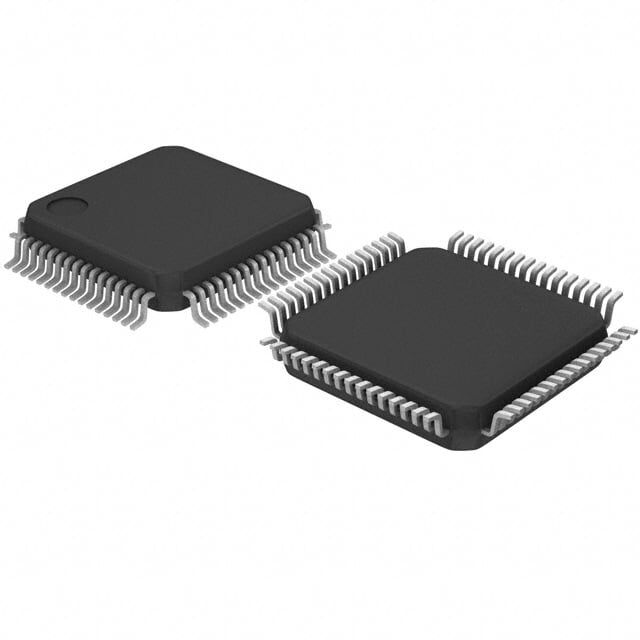

STM32F446RCT7TR 64-LQFP Mikrodenetleyici Entegre Devre
STM32F446RCT7TR
- Üretici
- STMicroelectronics
- Kılıf / Paket
- —
STM32F446RCT7TR 64-LQFP Mikrodenetleyici Entegre Devre Hakkında
STM32F446RCT7TR, ARM Cortex-M4 çekirdekli 32-bit mikrodenetleyicidir; 256KB Flash ve 128KB RAM içerir. 180MHz hızda çalışır, 1.7V-3.6V besleme aralığını destekler ve 64-LQFP (10x10) SMD pakettedir. CAN, I2C, SPI, UART/USART ve USB/USB OTG gibi arayüzleri bulunur.
STM32F446RCT7TR IC MCU 32BIT 256KB FLASH 64LQFP
| Ürün Kodu | STM32F446RCT7TR |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit |
| Data Converters | A/D 16x12b; D/A 2x12b |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Number of I/O | 50 |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Oscillator Type | Internal |
| Package / Case | 64-LQFP |
| Part Status | Active |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, LVD, POR, PWM, WDT |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | Flash |
| RAM Size | 128K x 8 |
| Speed | 180MHz |
| Supplier Device Package | 64-LQFP (10x10) |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
