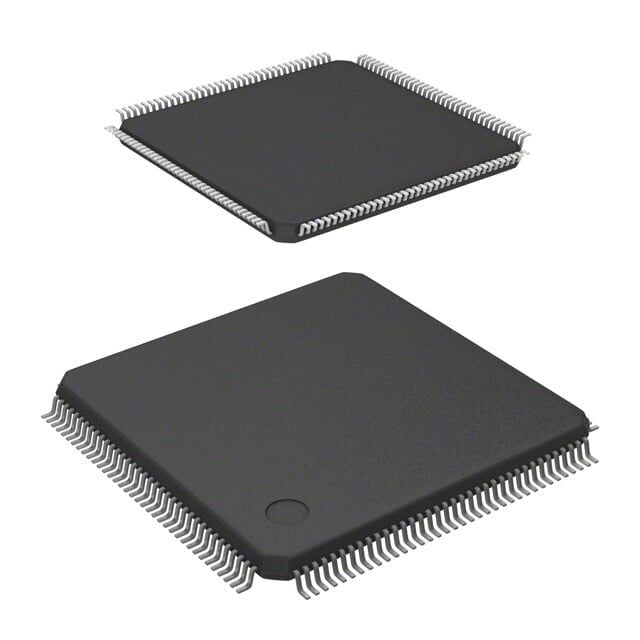

STM32F439ZIT6 144-LQFP Entegre Devre Hakkında
STMicroelectronics STM32F439ZIT6, ARM Cortex-M4 tabanlı 32-bit MCU’dur ve 2MB Flash bellek içerir. 144-LQFP (20x20) SMD pakette, 180MHz hızda çalışır ve 1.8V–3.6V besleme aralığını destekler. Ethernet, USB OTG, CAN, SPI, I²C ve UART/USART gibi arayüzlere sahiptir.
STM32F439ZIT6 IC MCU 32BIT 2MB FLASH 144LQFP
| Ürün Kodu | STM32F439ZIT6 |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, SPI, UART/USART, USB OTG |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit |
| Data Converters | A/D 24x12b; D/A 2x12b |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Number of I/O | 114 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package / Case | 144-LQFP |
| Part Status | Active |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
| Program Memory Size | 2MB (2M x 8) |
| Program Memory Type | Flash |
| RAM Size | 256K x 8 |
| Speed | 180MHz |
| Supplier Device Package | 144-LQFP (20x20) |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
