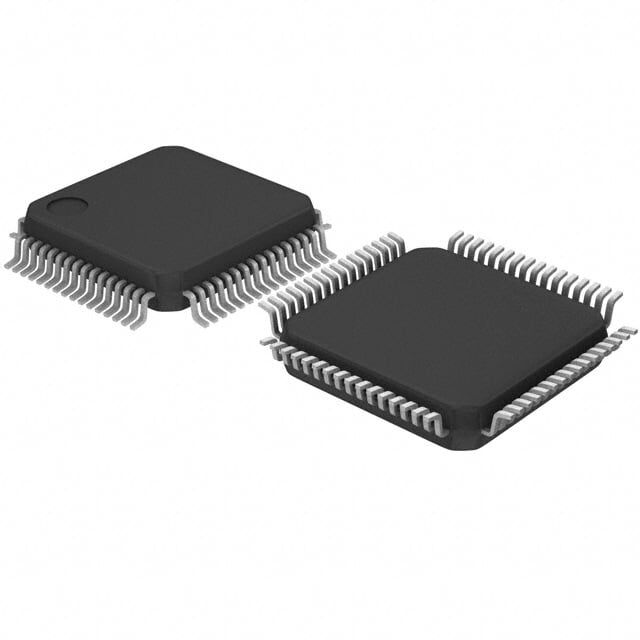

STM32F415RGT6 64-LQFP Mikrodenetleyici Entegre Devre
STM32F415RGT6
- Üretici
- STMicroelectronics
- Kılıf / Paket
- —
STM32F415RGT6 64-LQFP Mikrodenetleyici Entegre Devre Hakkında
STM32F415RGT6, ARM Cortex-M4 çekirdekli 32-bit mikrodenetleyicidir ve 1MB Flash bellek içerir. 64-LQFP (10x10) SMD pakettedir, 168MHz hızda çalışır ve 1.8V-3.6V besleme aralığını destekler. CAN, I2C, SPI, UART/USART ve USB OTG gibi haberleşme arayüzlerine sahiptir.
STM32F415RGT6 IC MCU 32BIT 1MB FLASH 64LQFP
| Ürün Kodu | STM32F415RGT6 |
| Connectivity | CANbus, I²C, IrDA, LINbus, SPI, UART/USART, USB OTG |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit |
| Data Converters | A/D 16x12b; D/A 2x12b |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Number of I/O | 51 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package / Case | 64-LQFP |
| Part Status | Active |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | Flash |
| RAM Size | 192K x 8 |
| Speed | 168MHz |
| Supplier Device Package | 64-LQFP (10x10) |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
