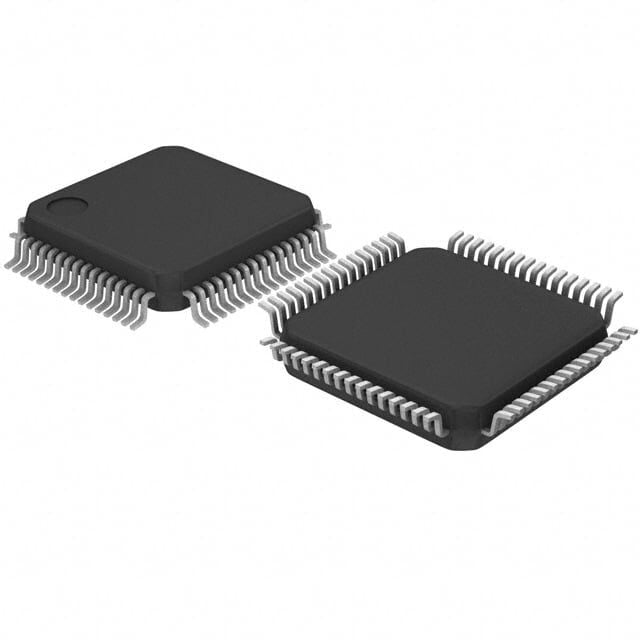

STM32F413RHT6 64-LQFP Mikrodenetleyici Entegre Devre
STM32F413RHT6
- Üretici
- STMicroelectronics
- Kılıf / Paket
- —
STM32F413RHT6 64-LQFP Mikrodenetleyici Entegre Devre Hakkında
STM32F413RHT6, STMicroelectronics üretimi ARM Cortex-M4 tabanlı 32-bit mikrodenetleyicidir. 1.5MB Flash, 320KB RAM, 100MHz çalışma hızı ve 50 I/O sunar; 64-LQFP (10x10) SMD pakettedir. CAN, I2C, SPI, UART/USART, USB OTG, SDIO ve QSPI gibi arayüzleri destekler.
STM32F413RHT6 IC MCU 32BIT 1.5MB FLASH 64LQFP
| Ürün Kodu | STM32F413RHT6 |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SDIO, QSPI, SAI, SPI, UART/USART, USB OTG |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit |
| Data Converters | A/D 16x12b; D/A 2x12b |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Number of I/O | 50 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package / Case | 64-LQFP |
| Part Status | Active |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
| Program Memory Size | 1.5MB (1.5M x 8) |
| Program Memory Type | Flash |
| RAM Size | 320K x 8 |
| Speed | 100MHz |
| Supplier Device Package | 64-LQFP (10x10) |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
