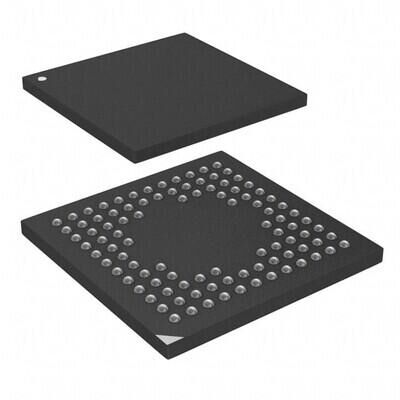

STM32F412VGH6 100-UFBGA (7x7) Mikrodenetleyici Entegre Devre
STM32F412VGH6
- Üretici
- STMicroelectronics
- Kılıf / Paket
- —
STM32F412VGH6 100-UFBGA (7x7) Mikrodenetleyici Entegre Devre Hakkında
STM32F412VGH6, ARM Cortex-M4 çekirdekli 32-bit mikrodenetleyicidir ve 1MB Flash bellek içerir. 100MHz çalışma hızı, 81 I/O ve 16x12-bit ADC ile gelir; CAN, I2C, SPI, UART/USART, USB OTG ve SDIO gibi arayüzleri destekler. 1.7V-3.6V besleme aralığında çalışır ve 100-UFBGA (7x7) SMD pakettedir.
STM32F412VGH6 IC MCU 32BIT 1MB FLASH 100UFBGA
| Ürün Kodu | STM32F412VGH6 |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, UART/USART, USB OTG |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit |
| Data Converters | A/D 16x12b |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Number of I/O | 81 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package / Case | 100-UFBGA |
| Part Status | Active |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | Flash |
| RAM Size | 256K x 8 |
| Speed | 100MHz |
| Supplier Device Package | 100-UFBGA (7x7) |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
