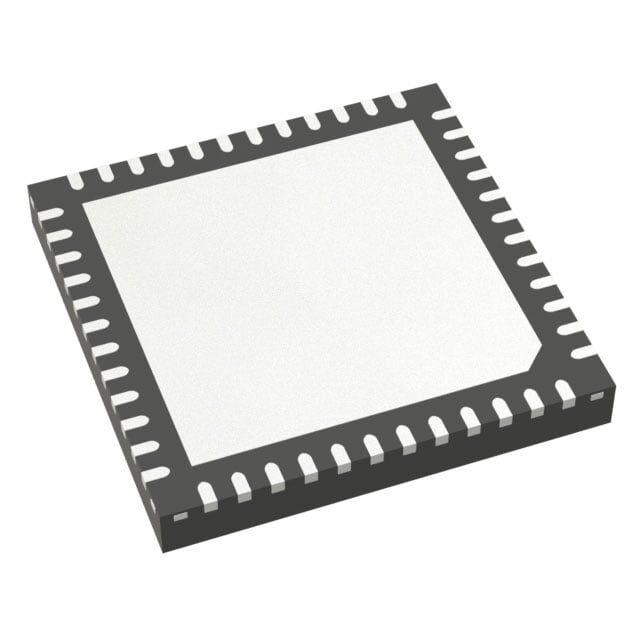

STM32F411CEU6TR 48-UFQFPN (7x7) Entegre Devre
STM32F411CEU6TR
- Üretici
- STMicroelectronics
- Kılıf / Paket
- —
STM32F411CEU6TR 48-UFQFPN (7x7) Entegre Devre Hakkında
STM32F411CEU6TR, ARM Cortex-M4 çekirdekli 32-bit mikrodenetleyicidir; 100MHz hız, 512KB Flash ve 128KB RAM içerir. 36 I/O, 10x12-bit ADC ve I2C, SPI, UART/USART, USB OTG, SDIO gibi arayüzleri destekler. 1.7V-3.6V besleme aralığında çalışır ve 48-UFQFN/UFQFPN (7x7) SMD pakettedir.
STM32F411CEU6TR IC MCU 32BIT 512KB FLSH 48UFQFPN
| Ürün Kodu | STM32F411CEU6TR |
| Connectivity | I²C, IrDA, LINbus, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit |
| Data Converters | A/D 10x12b |
| EEPROM Size | - |
| Mounting Type | Surface Mount |
| Number of I/O | 36 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Oscillator Type | Internal |
| Package / Case | 48-UFQFN Exposed Pad |
| Part Status | Active |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | Flash |
| RAM Size | 128K x 8 |
| Speed | 100MHz |
| Supplier Device Package | 48-UFQFPN (7x7) |
| Voltage - Supply (Vcc/Vdd) | 1.7V ~ 3.6V |
